Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP5 ZP7 ZP9
Video
Video

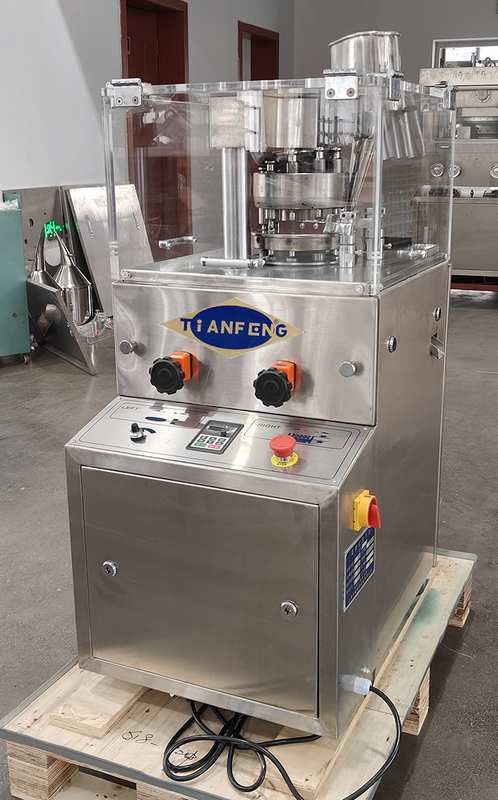

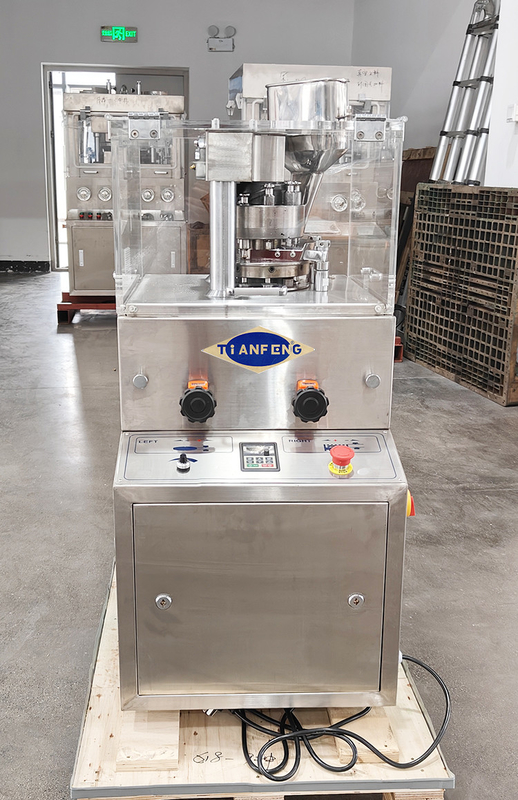

ZP5/7/9 Type Small Rotary Tablet Press Machine ( pharmaceutical machinery, pharmaceutical equipment)
Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 60kN.
ZP5/7/9 Type Pharmaceutical Pill Press are manufactured to the highest standards and compliant with current GMP and CE standards .
Products introduction

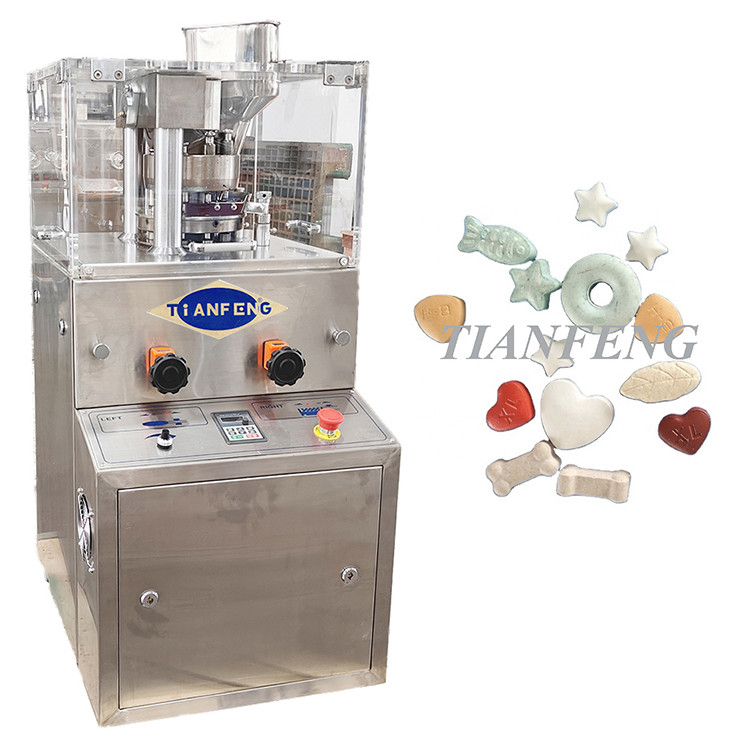

ZP5/7/9 Type Pharmaceutical Pill Press machine is a single sided tablet press which is capable of producing tablets with diameters up to 12mm. With minimal operator and maintenance training demands, the machine provides a cost effective solution to small and medium batch tablet production.
It is a continuous automatic tablet press which can be used in the pharmaceutical, chemical, food, and electronic industries.

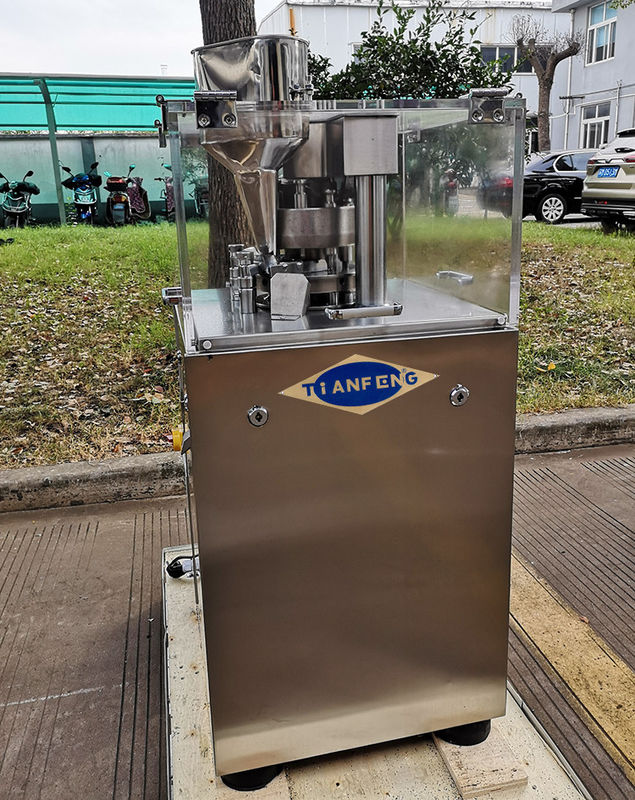

· The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement.
· It has transparent windows so that press condition can be observed clearly and the windows can be opened.
· Reliable safety sealing system and dust-proof system. Cleaning and maintenance is easier.

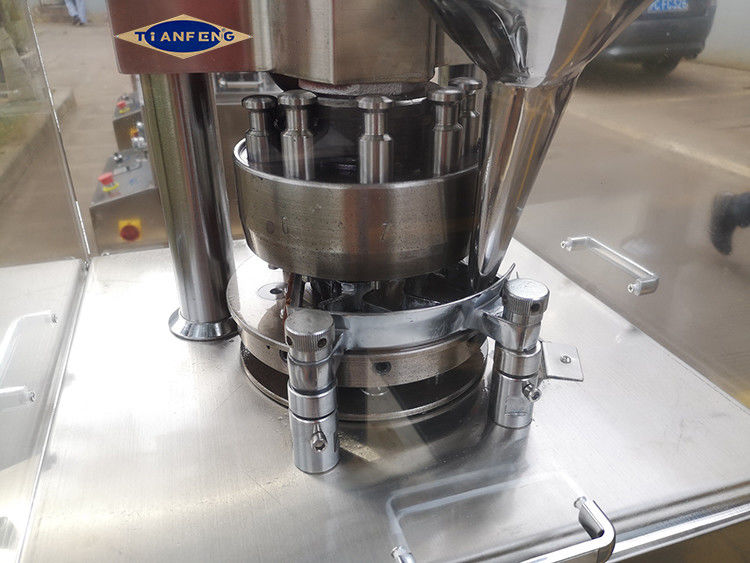

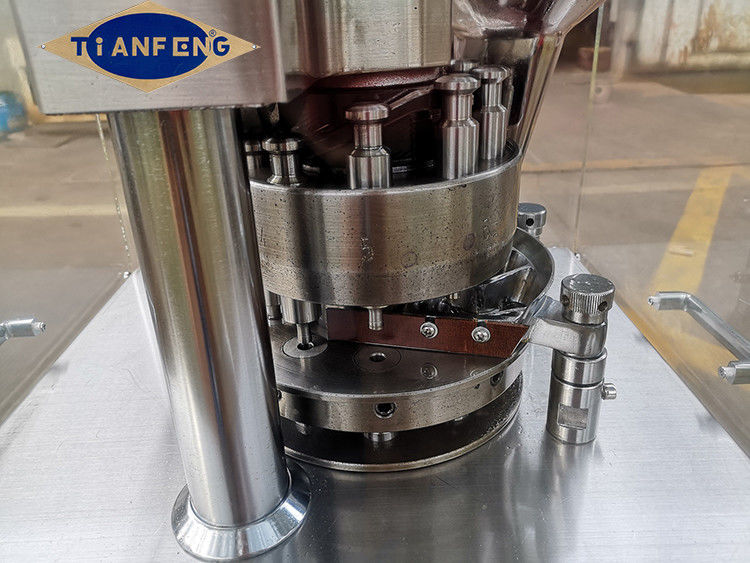

· The surface of the rotary table is specially treated to maintain surface gloss and prevent cross-contamination.
· Adopt frequency conversion speed control device for electrical speed control, which is easy to operate, smooth to run, safe and accurate.
· All transmissions are arranged inside the machine to keep the parts clean.
· Equipped with overload protection device, it can automatically stop when the pressure is overloaded.
· The machine is equipped with electromagnetic brake motor and other safety protection devices.
· The compression parts is entirely separated from the driving mechanisms.
· All spare parts to be in contact with the pharmaceuticals are made of stainless steel or the surface being treated specially for non-toxicity & corrosion proof.
· Machine speed, the depth of filling, the thickness of the tablet could be adjusted.
· Easily remove parts for quick machine’s maintenance.
Rotary tablet press advantages:
· Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.
· Higher outputs of 16200 tablets per hour save time and enable you to meet your large production demands.
· It reduces wastage of material.
· It allows independent control of both the weight and hardness of tablets.
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 60 | ||
| Max. Dia. of tablet (mm) | 20(special 22) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 2.2 | ||
| Overall dimensions(mm) | 580*730*1200 | ||
| Net weight (kg) | 320 | ||
Step 1: Pack it in a simple and easy-to-assemble form.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like botton control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
