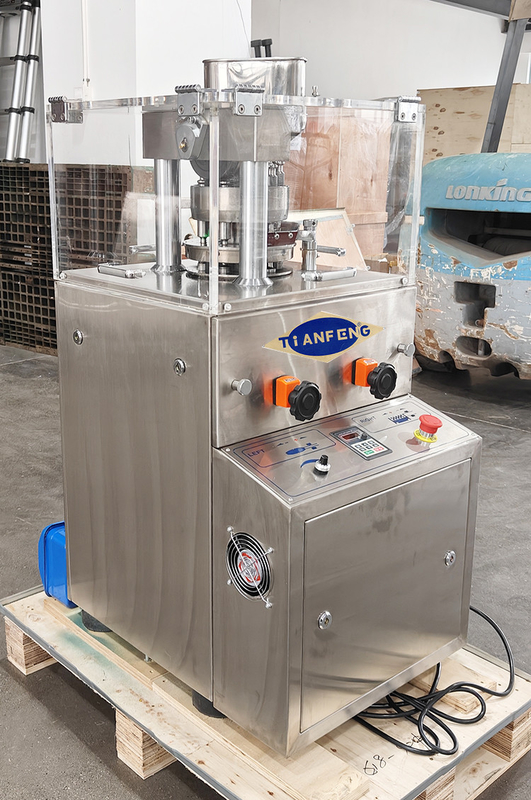

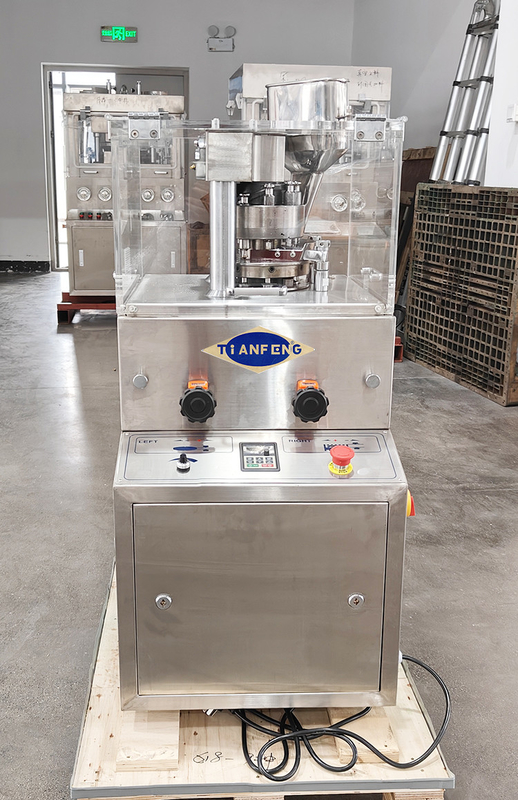

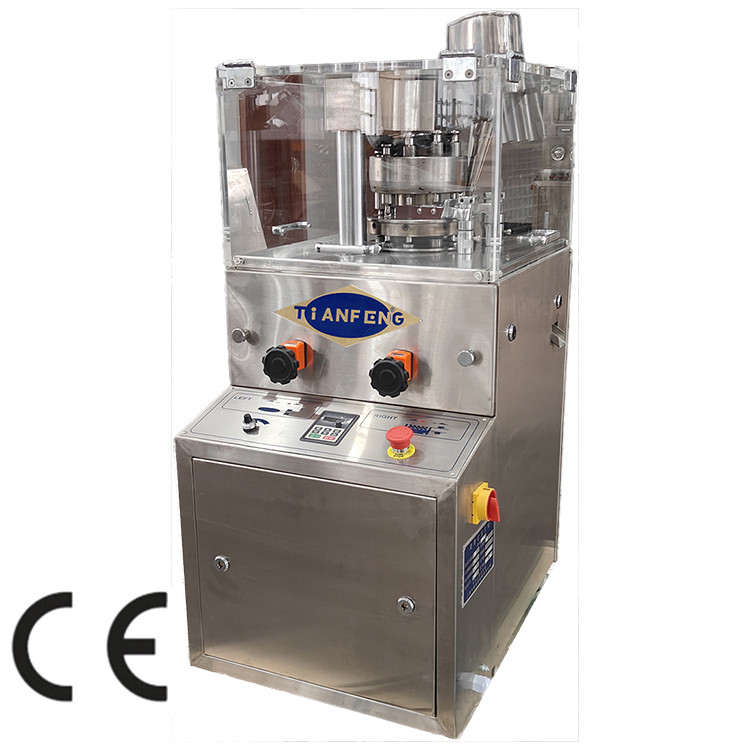

ZP5/7/9 Type Small Rotary Tablet Press Machine ( pharmaceutical machinery, pharmaceutical equipment)
Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 60kN.
ZP5/7/9 Type Pharmaceutical Pill Press are manufactured to the highest standards and compliant with current GMP and CE standards .
Products introduction
ZP5/7/9 Type Pharmaceutical Pill Press machine is a single sided tablet press which is capable of producing tablets with diameters up to 12mm. With minimal operator and maintenance training demands, the machine provides a cost effective solution to small and medium batch tablet production.
It is a continuous automatic tablet press which can be used in the pharmaceutical, chemical, food, and electronic industries.
Rotary tablet press advantages:
· Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.
· Higher outputs of 16200 tablets per hour save time and enable you to meet your large production demands.
· It reduces wastage of material.
· It allows independent control of both the weight and hardness of tablets.
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 60 | ||
| Max. Dia. of tablet (mm) | 20(special 22) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 2.2 | ||
| Overall dimensions(mm) | 580*730*1200 | ||
| Net weight (kg) | 320 | ||
