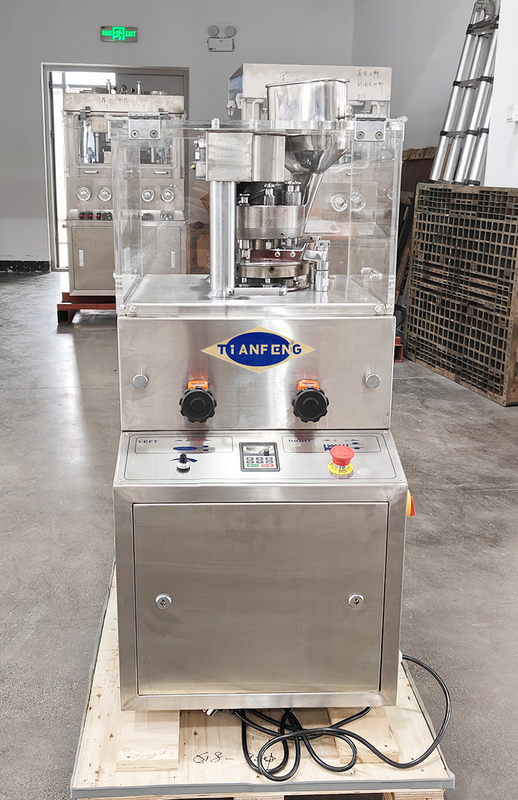

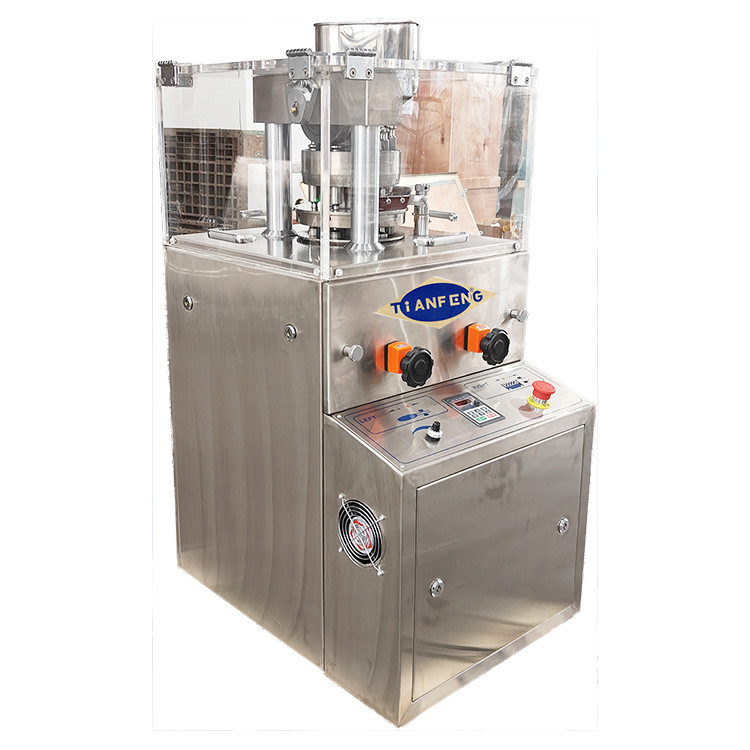

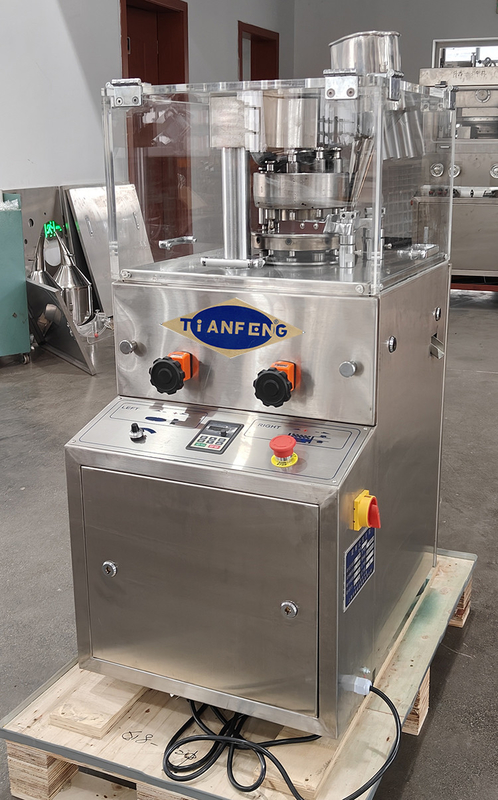

Tablet Press Machine (ZP5/7/9 Type Pharmaceutical Pill Press compliant with GMP and CE Standards)
Tablet press is generally used in the manufacturing of distribution-quantities of tablets.
The machine is used to create varied shapes of tablets from granulated material.
It used to manufacture tablets for numerous industries like pharmaceuticals, cosmetics, confectionery, herbal etc.

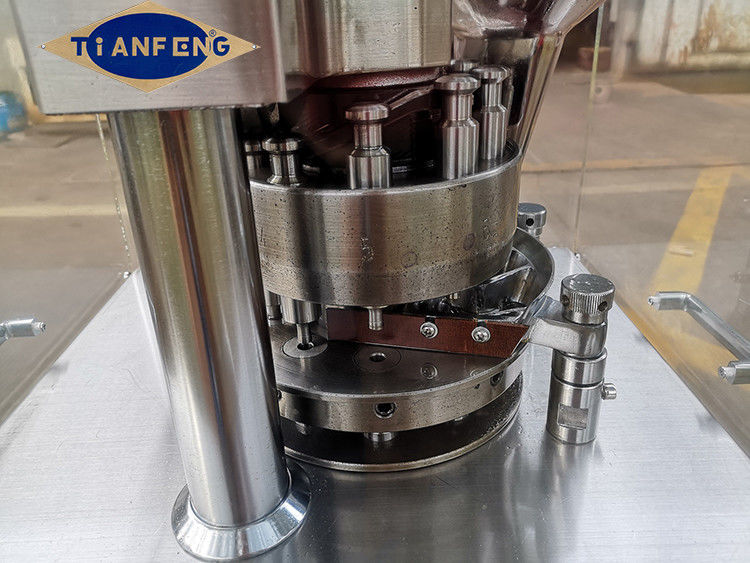

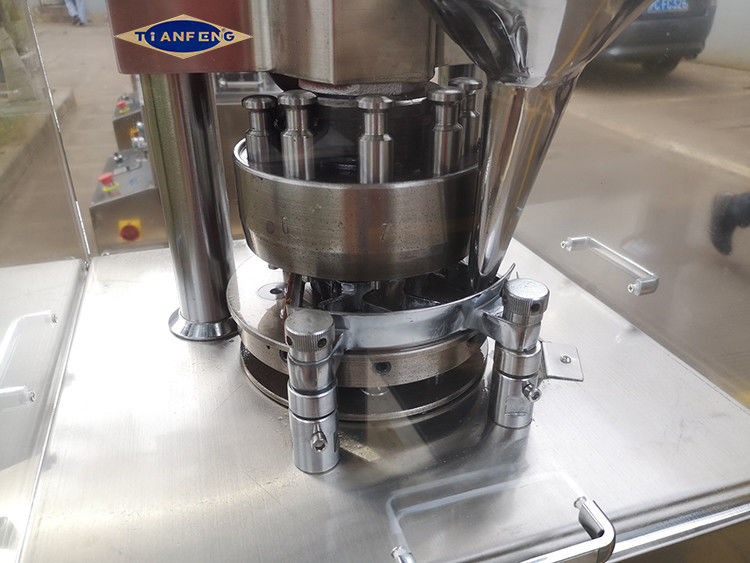

ZP5/7/9 Type Small Rotary Tablet Press Machine ( pharmaceutical machinery, pharmaceutical equipment)
Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 60kN.
ZP5/7/9 Type Pharmaceutical Pill Press are manufactured to the highest standards and compliant with current GMP and CE standards .
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 60 | ||
| Max. Dia. of tablet (mm) | 20(special 22) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 2.2 | ||
| Overall dimensions(mm) | 580*730*1200 | ||
| Net weight (kg) | 320 | ||
Step 1: Pack it in a simple and easy-to-assemble form.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
