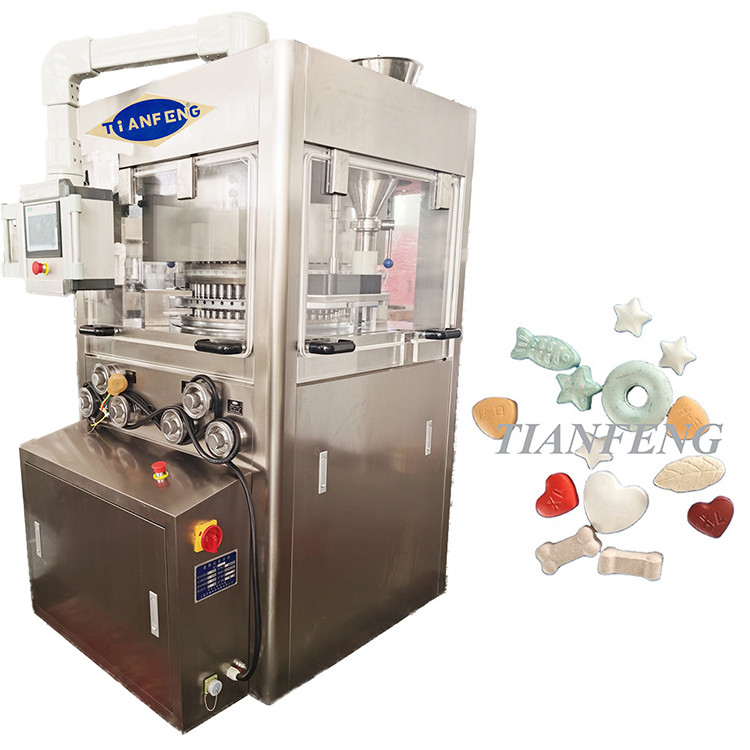

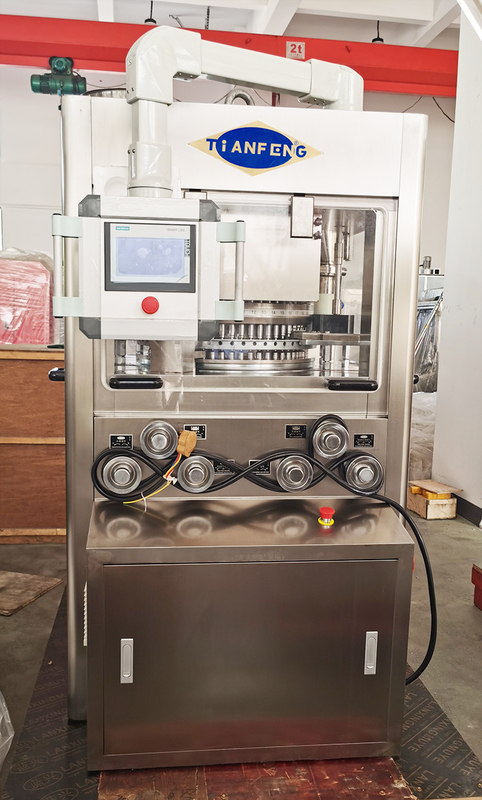

Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling

Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling

high speed rotary tablet press equipment

pharmaceutical pill press machine

pharmaceutical rotary tablet press 220v

Place of Origin:

Shanghai, China

Brand Name:

Tianfeng

Certification:

CE/ISO

Model Number:

HSZP35 HSZP41 HSZP45 HSZP51 HSZP57

Contact Us
Request A Quote
Product Details
Voltage:
220V/380V, 50HZ/60HZ
Condition:
New
Warranty:
13 Months
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Power(w):
7.5KW
Type:
Rotary Tablet Press Machine
Control System:
PLC
Material:
Stainless Steel
Max. Filling Depth:
15mm
Max. Main Compression:
20KN
Max. Pre-compression:
60KN
Max. Pressure:
80KN
Max. Production Capacity:
328000pcs/h
Max. Punch Cavity:
57sets
Max. Tablet Diameter:
25mm
Max. Tablet Thickness:
6mm
Max. Turret Speed:
45rpm
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
welcome to consult
Packaging Details
export wooden case
Delivery Time
45 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
50 units/month
Product Description

pharmaceutical pill press machine 45 turns/minute high speed HSZP tablet press with European standard D tooling



Main application:
This machine is a continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Main benefits at a glance:

  • High speed tablet production with between 35 and 57 stations producing up to 328,000 pieces/hour
  • Advanced yet highly intuitive LCD display touch screen control panel for easy programming, adjustment and control
  • Pre-pressing function with up to 60 kN pressure and a maximum main pressure of up to 100 kN ensures fast, high quality output for pharmaceutical grade tablets of the highest commercial standard
  • Over-pressure cut out mechanism to avoid damage to punches
  • Automatic lubrication system for efficient maintenance and enhanced reliability
  • Sealed compression chamber with integral powder suction device reduces risk of contamination, reduces raw material wastage and avoids blockages
  • Organic glass turret shield improves operator safety and avoids cross contamination
  • Forced feeder ensures accurate dosing and better raw material efficiency
  • Inverter technology for reduced energy consumption, improved stability, better control and lower noise
  • Safety cut out mechanism and warning messages triggered if errors occur, including loose guide rails, loose punches, or low oil
Main Parameter
Model
HSZP-35
HSZP-37
HSZP-43
Dies (sets)
35
37
43
Max. Pressure (kn)
80
80
80
Max. Pre-Pressure (kn)
60
60
60
Max. dia. of tablet (mm)
25
23
18
Max. Depth of fill (mm):
18
18
18
Max. Thickness of largest table (mm)
6
6
6
Production capacity (pcs/h)
189000
199800
232200
Turret speed (r/min)
45
45
45
Motor power (kW)
7.5
7.5
7.5
Machine Height (mm)
Without Hopper
1750
1750
1750
Machine Height (mm)
Without Hopper
1900
1900
1900
Machine Floor Space (m2)
1170*1290
1170*1290
1170*1290
Weight (kg):
3500
3500
3500
Model
HSZP-45
HSZP-53
HSZP-57
Dies (sets)
45
57
53
Max. Pressure (kn)
80
80
80
Max. Pre-Pressure (kn)
60
60
60
Max. dia. of tablet (mm)
17
13
11
Max. Depth of fill (mm):
18
18
18
Max. Thickness of largest table (mm)
6
6
6
Production capacity (pcs/h)
243000
286200
307800
Turret speed (r/min)
45
45
45
Motor power (kW)
7.5
7.5
7.5
Machine Height (mm)
Without Hopper
1750
1750
1750
Machine Height (mm)
Without Hopper
1900
1900
1900
Machine Floor Space (m2)
1170*1290
1170*1290
1170*1290
Weight (kg):
3500
3500
3500


Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling 0Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling 1Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling 2Pharmaceutical High Speed Rotary Tablet Press With Standard European D Tooling 3

Packaging & Shipping



Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

Usually shipped salt tablet press machine HSZP35 HSZP41 HSZP51 HSZP57 by sea.

Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.



Installation Services:

Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
