Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D

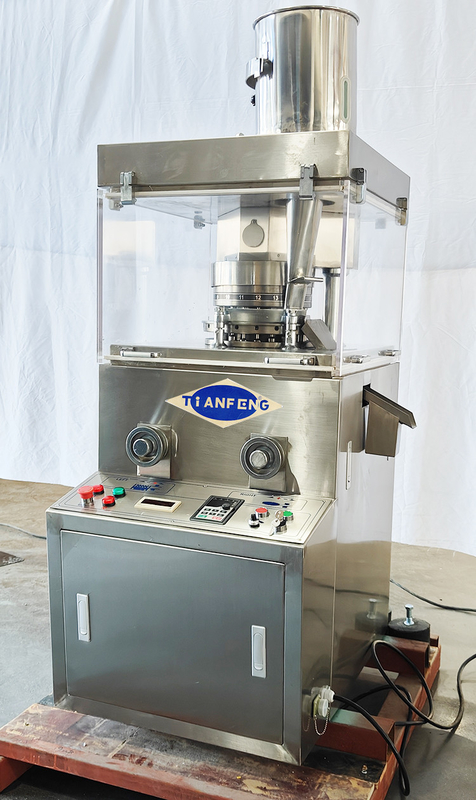

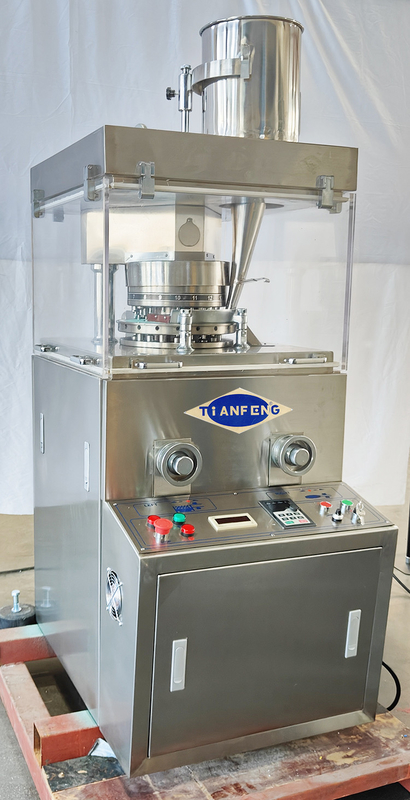

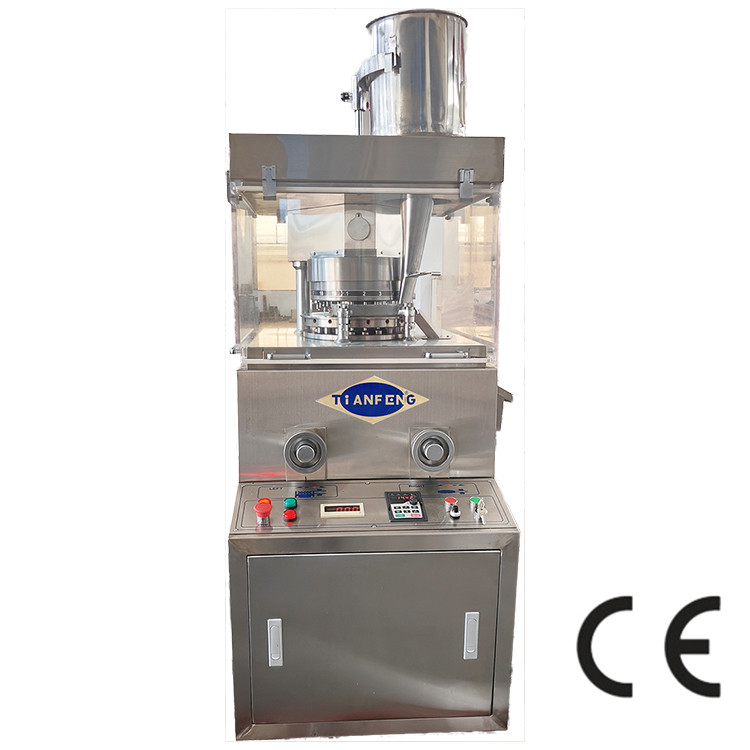

This machine integrates automatic rotation, frequency-conversion, speed—adjusting with continuous tablet-pressing. It is mainly used for the manufacture of tablet in pharmaceutical industry, it also applies to press the granular material into tablet in the industry of chemical, food, electronic etc.
This machine applies to the pressing of granular material of which powder content (over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular, low melting point, easy damping material and the powder without granular.
Rotary tablet press machi can produce round, special-shaped and character-engraved tablets, Ф4---25mm.
Characteristics:
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G.M.P requirement

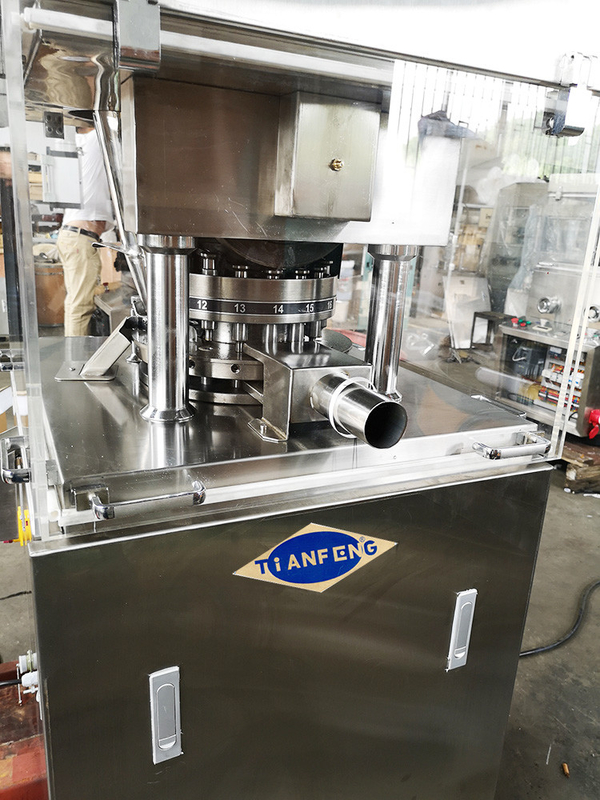

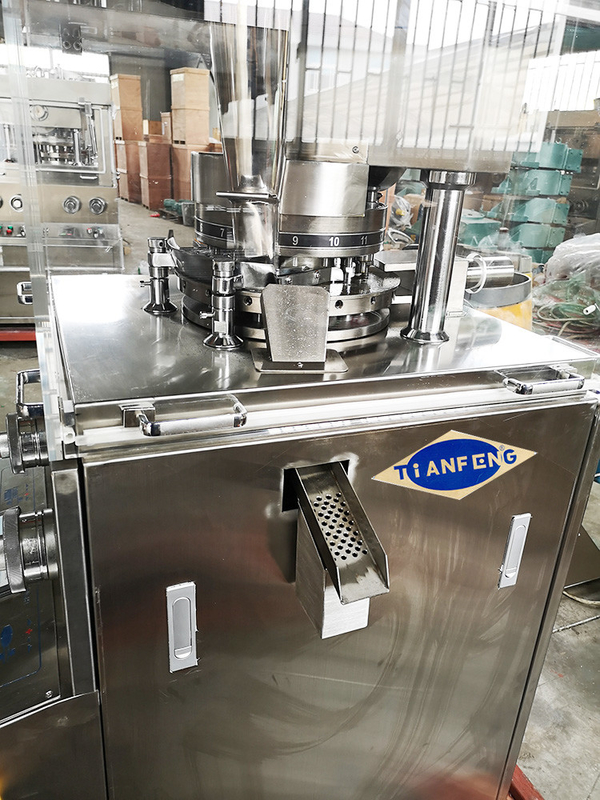

2. It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier
3. The machine can press not only round tablets but also different geometrical shape tablets and annular tablets, and the tablets may have the impressed letters on both sides

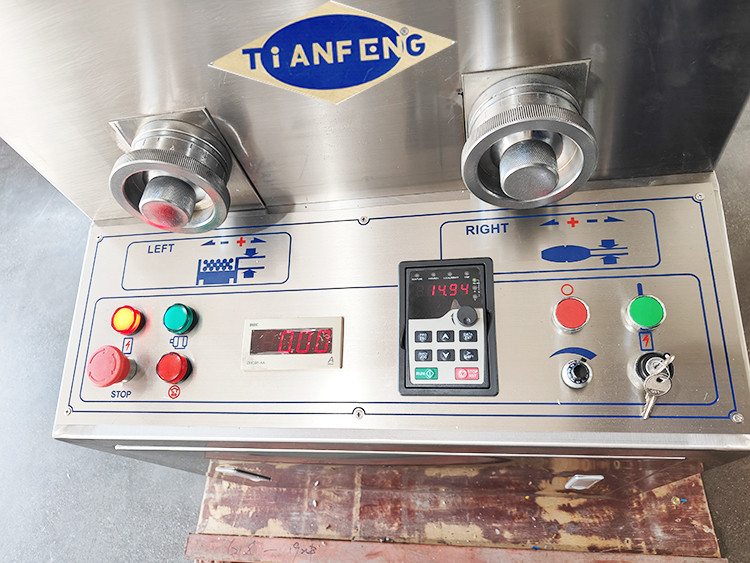

4. All the controller and devices are located in one side of the machine, so that it can be easier to operate
5. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold punch die set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
