Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D

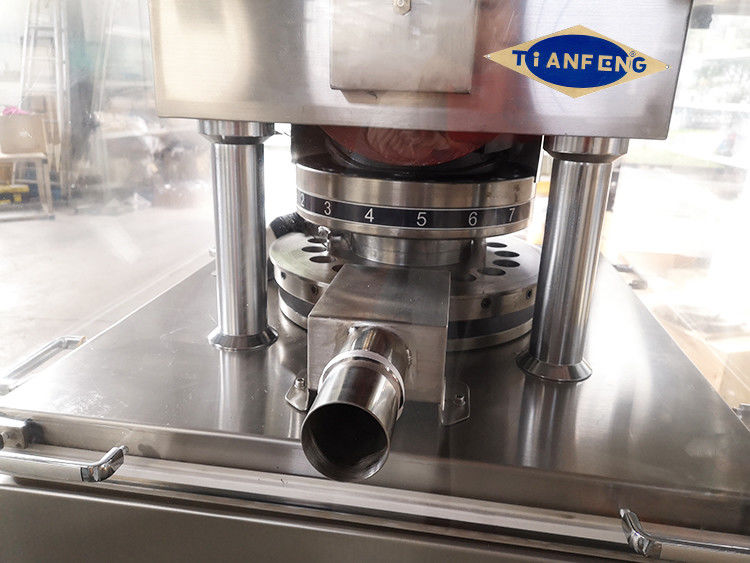

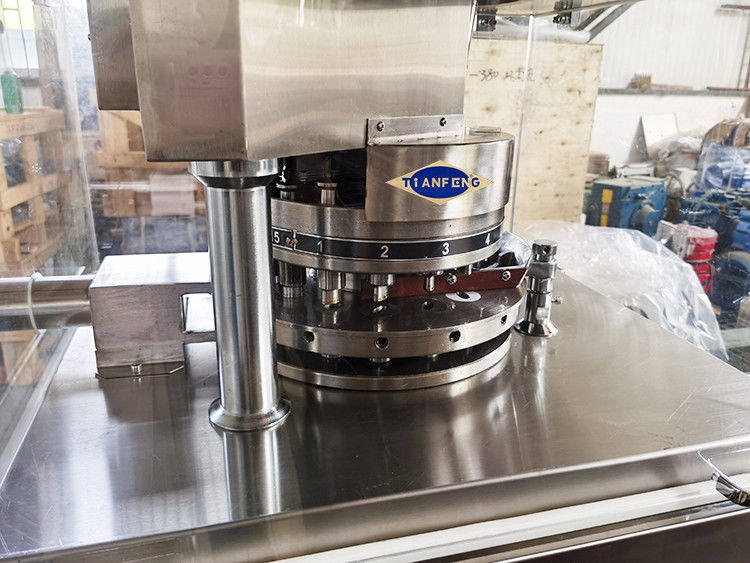

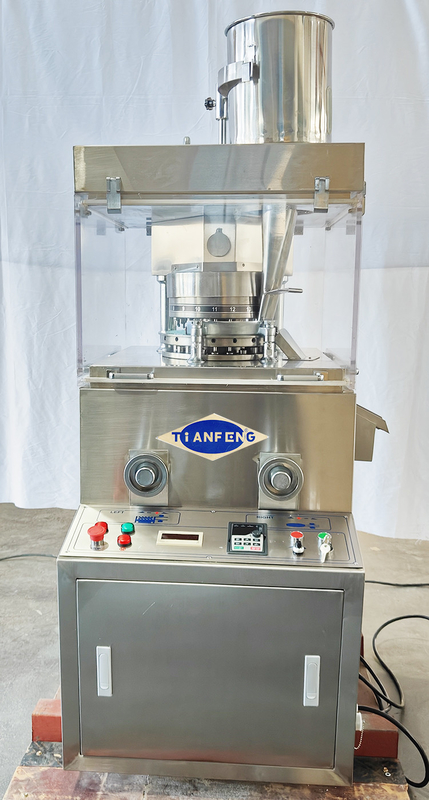

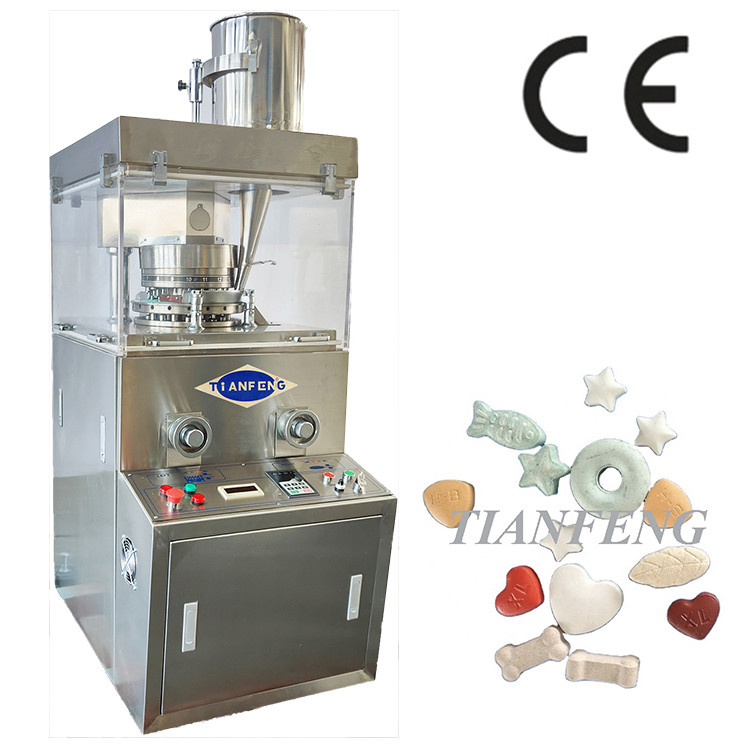

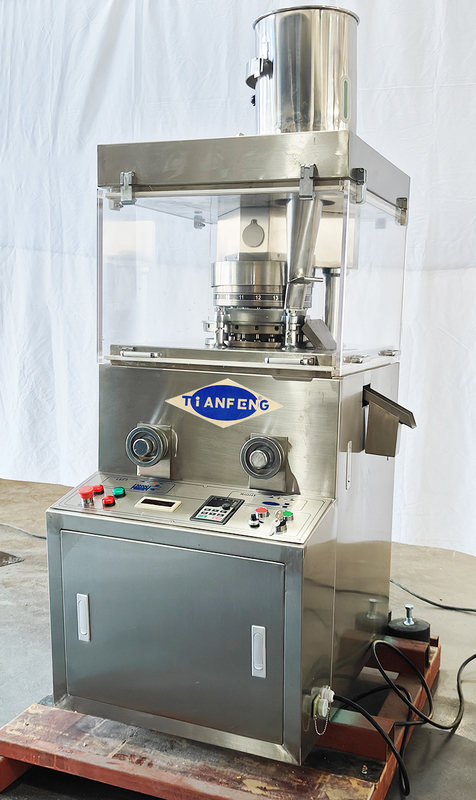

ZPW15D ZPW17D ZPW19D Vitamin Gulcose Calcium Tablet Press Machine is single-pressure type machine with automatic rotation and continuous tablet pressing can be applied to press granular raw materials into various ordinary and special-shaped tablets. It is mainly used in electronics, food, daily necessities and pharmaceutical industries. The totally-enclosed outer housing is made of stainless steel, conforming to the GMP standard. Besides, as it is equipped with transparent observation windows, the working status of the machine can be cleared observed. In addition, they can be opened to make internal cleaning and maintenance easy.
· With such features as high pressure, wide tablet range, and being able to make tablets of various shapes including ordinary, special-shaped and ring-shaped tablets, it is especially suitable for production of small batches and varieties of products.

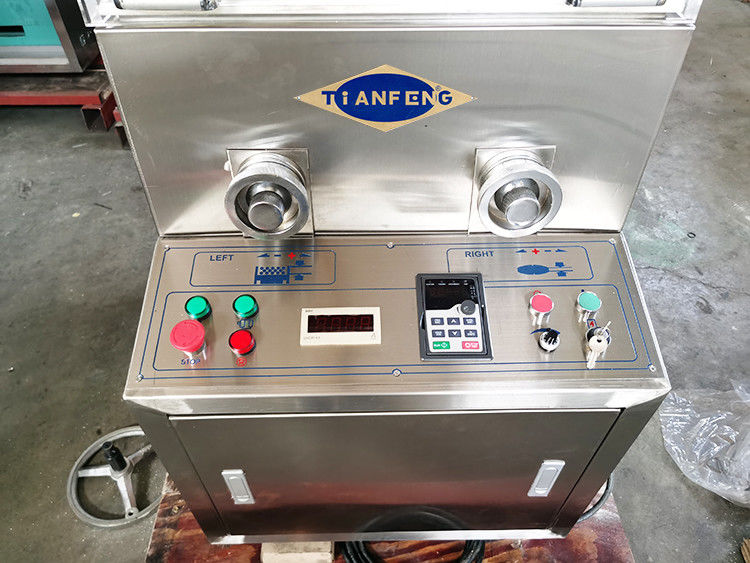

· With mechanical and electrical integration, all controllers and regulating devices are centralized at one side of the machine, making operation much easier.
· The upper and lower pressing wheels adopt the rolling friction, which helps reduce the working resistance and the power loss.
· The adjustment and control mechanisms of filling amount, tablet thickness and rotation speed are all under centralized control, which makes operation easy.
· This machine adopts enclosed oil-immersed worm gear drive to reduce power loss and prolong the service life of worm gear.
· The peripheral cover is a fully-enclosed structure and the sealed pressing chamber and driving mechanism are completely separated, which can prevent dust from flying and avoid cross contamination of oil.
· This machine is equipped with an independent vacuum cleaner, whose high efficiency in dust collection ensures the normal operation of the machine.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
Send your inquiry directly to us
