Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D

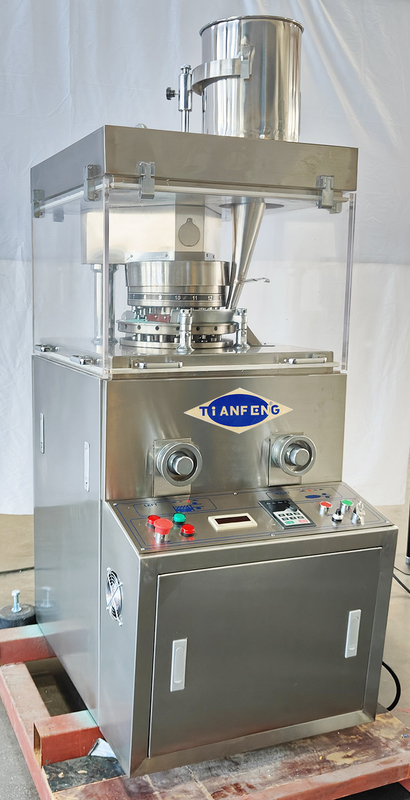

ZPW15D ZPW17D ZPW19D CE Approved Single Press Type Rotary Tablet Press Machine Pharmaceutical Machinery Small Scaled Manufacturing Machine
Main Application
The machine is a single-pressing type machine with automatic rotation and continuous tablet pressing researched and developed by our company, used to press granular raw materials into various ordinary and special-shaped tablets. It is mainly used in electronics, food, daily commodities, medicine and other industries.
The peripheral housing is fully closed. It is made of stainless steel, conforming to GMP requirements. The transparent observation windows installed enable the working status of the machine to be clearly observed. In additioni, they can be opened to made internal cleaning and maintenance easy.

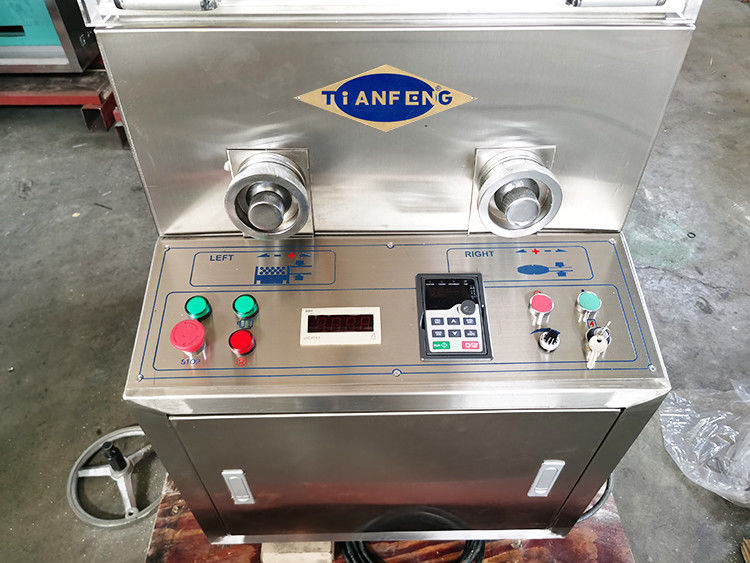

With such features as high pressure, wide tablet range, and eing able to make tablets of various shapes includeing ordinary, special-shaped and ring-shaped tablets, the machine is especially suitable for production of small batches and diversified varieties of products. With mechanical and electrical integration, all controllers and regulating devices are centralized at one side of the machine to facilitate the operation.
The machine is equipped with pressure overload protective device to avoid damage to it. The driving mechanism adopting oil-immersed lubrication is closed at the bottom of the machine to prolong the service life and avoid cross contamination.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold punch die set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
