Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D

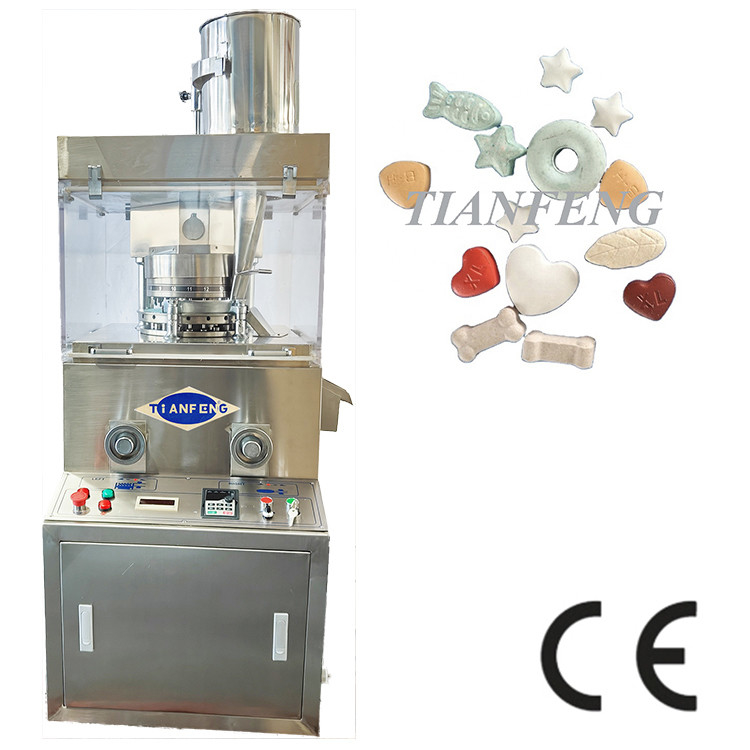

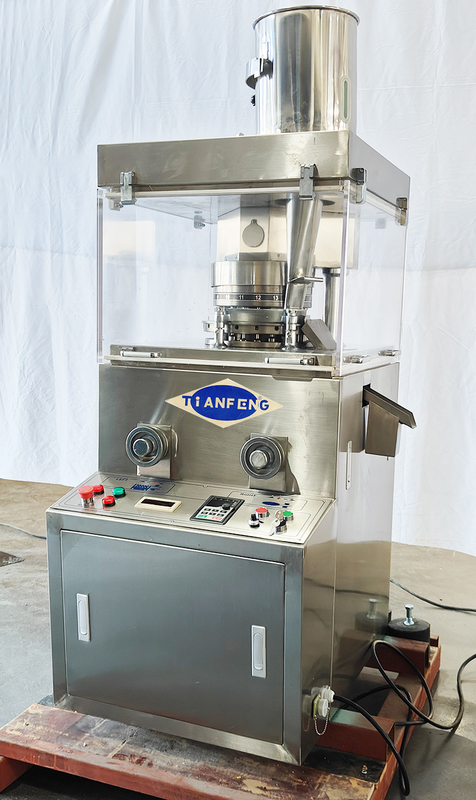

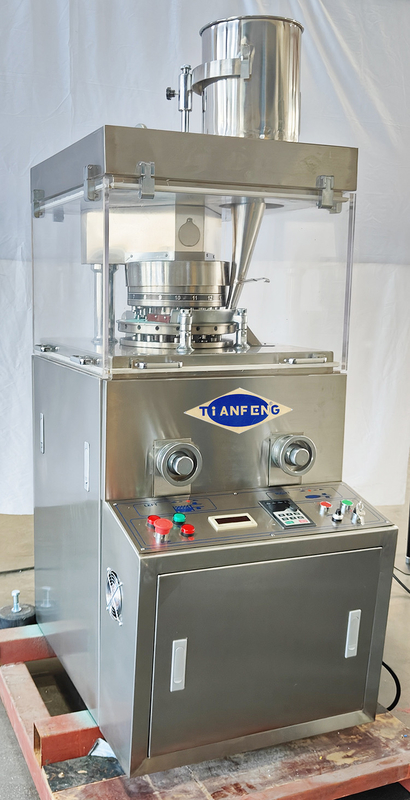

ZPW15D ZPW17D ZPW19D Rotary Tablet Press Machine for Milk, Mint Candy, Pill, Mothball Tablet Compression Machine
Main Application
The machine is a single-pressing type machine with automatic rotation and continuous tablet pressing researched and developed by our company, used to press granular raw materials into various ordinary and special-shaped tablets. It is mainly used in electronics, food, daily commodities, medicine and other industries.
The peripheral housing is fully closed. It is made of stainless steel, conforming to GMP requirements. The transparent observation windows installed enable the working status of the machine to be clearly observed. In additioni, they can be opened to made internal cleaning and maintenance easy.

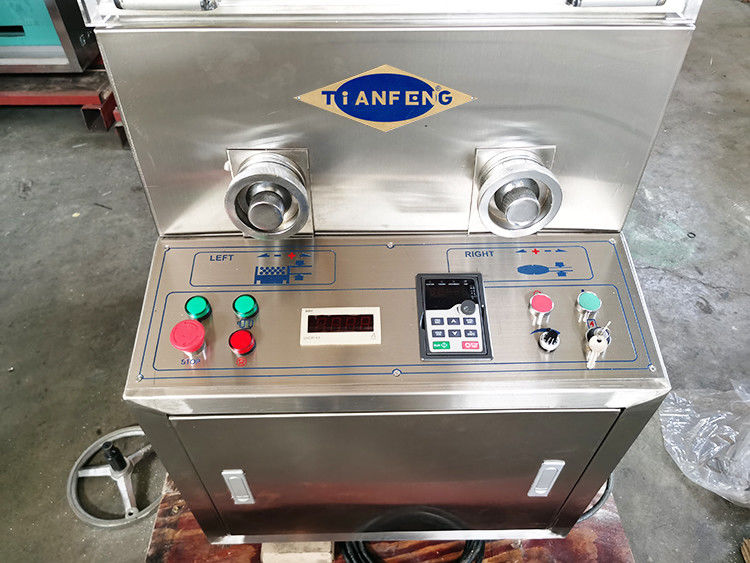

With such features as high pressure, wide tablet range, and eing able to make tablets of various shapes includeing ordinary, special-shaped and ring-shaped tablets, the machine is especially suitable for production of small batches and diversified varieties of products. With mechanical and electrical integration, all controllers and regulating devices are centralized at one side of the machine to facilitate the operation.
The machine is equipped with pressure overload protective device to avoid damage to it. The driving mechanism adopting oil-immersed lubrication is closed at the bottom of the machine to prolong the service life and avoid cross contamination.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
Send your inquiry directly to us
