Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D
Video
Video
Video
Tablet press use:

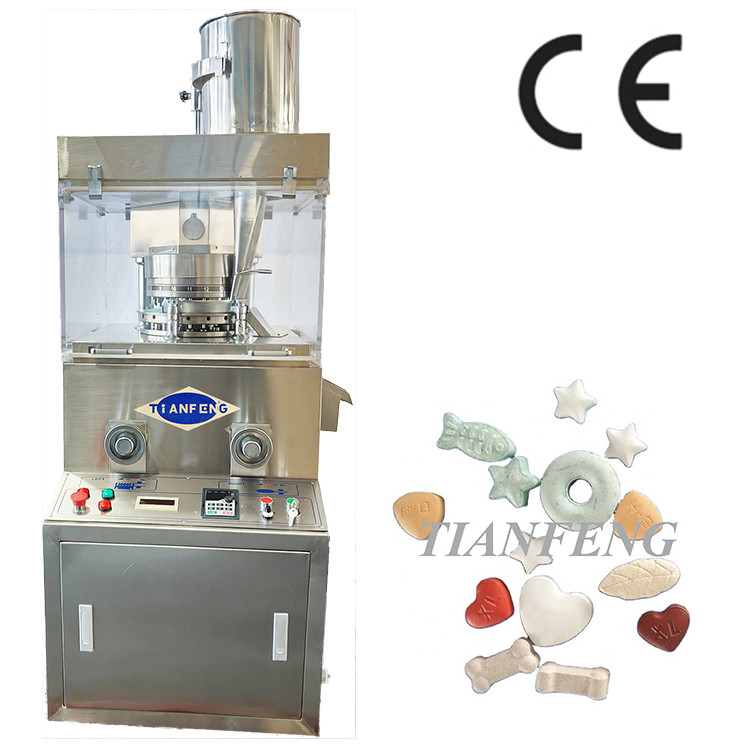

ZPW15D ZPW17D ZPW19D rotary tablet press is a single-type automatic rotary continuous tablet press machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, and is also suitable for chemical, food, electronic, Industrial sectors such as plastics and powder metallurgy. It can suppress special-shaped and double-sided lettering tablets.
Features:
ZPW15D ZPW17D ZPW19D rotary tablet press has the characteristics of high pressure, large compression range, and can compress tablets of various shapes such as ordinary, irregular and circular shapes.

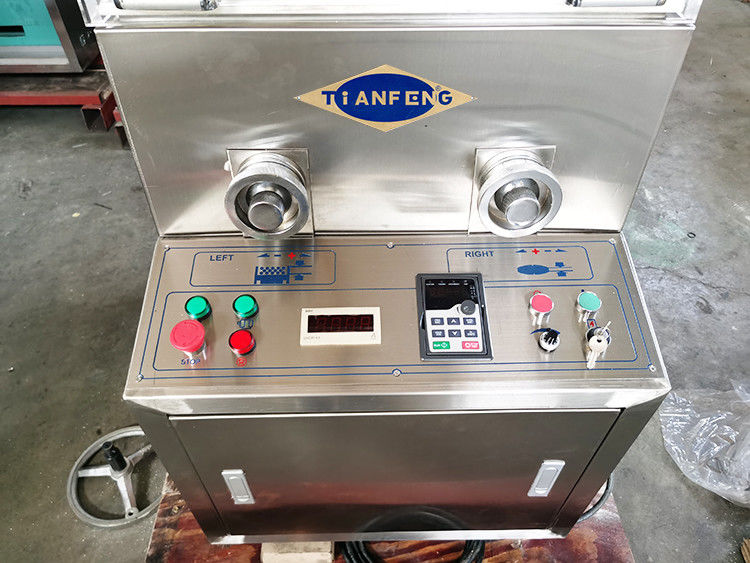

Suitable for multiple varieties and small batch production. Mechatronics, all controllers and regulating devices are concentrated on one side of the body, easy to operate.
Equipped with pressure overload protection device to avoid machine damage.
The transmission mechanism with oil penetration type lubrication is sealed under the body, which prolongs the service life and avoids cross contamination. The die can be used with ZP15/17/19 tablet press.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold punch die set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
