Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D
Video
Video
Tablet press use:

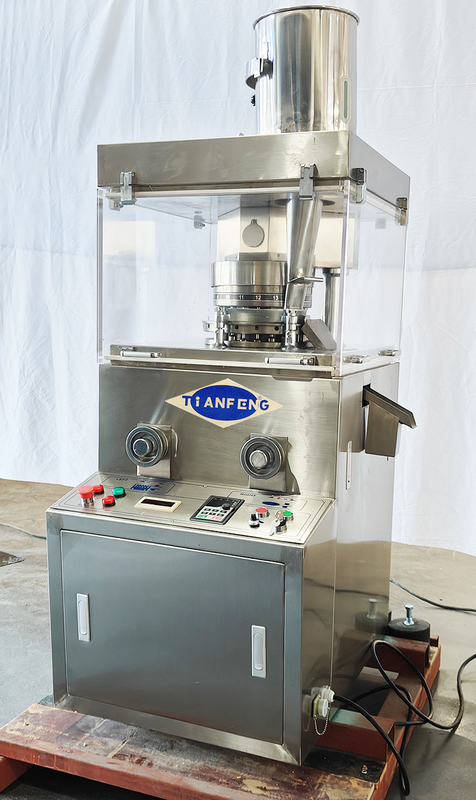

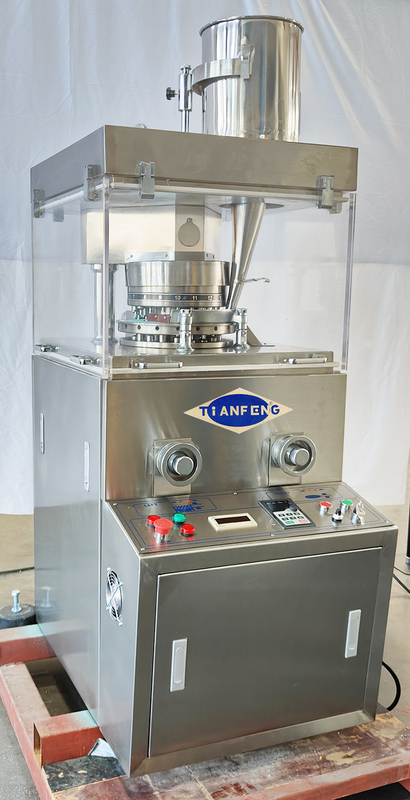

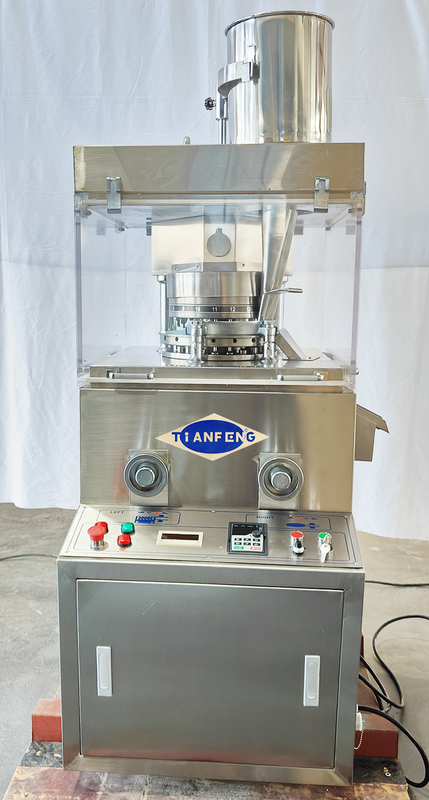

ZPW15D ZPW17D ZPW19D rotary tablet press is a single-type automatic rotary continuous tablet press machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, and is also suitable for chemical, food, electronic, Industrial sectors such as plastics and powder metallurgy. It can suppress special-shaped and double-sided lettering tablets.
Features:
ZPW15D ZPW17D ZPW19D rotary tablet press has the characteristics of high pressure, large compression range, and can compress tablets of various shapes such as ordinary, irregular and circular shapes.

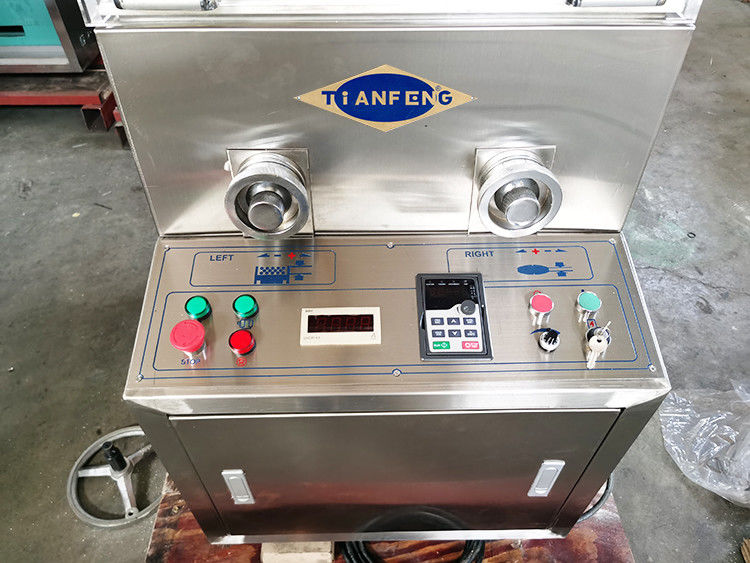

Suitable for multiple varieties and small batch production. Mechatronics, all controllers and regulating devices are concentrated on one side of the body, easy to operate.
Equipped with pressure overload protection device to avoid machine damage.
The transmission mechanism with oil penetration type lubrication is sealed under the body, which prolongs the service life and avoids cross contamination. The die can be used with ZP15/17/19 tablet press.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
FAQ
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will grantee quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of course you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
