Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP-5 ZP-7 ZP-9 Zp-10 Zp-11 Zp-12

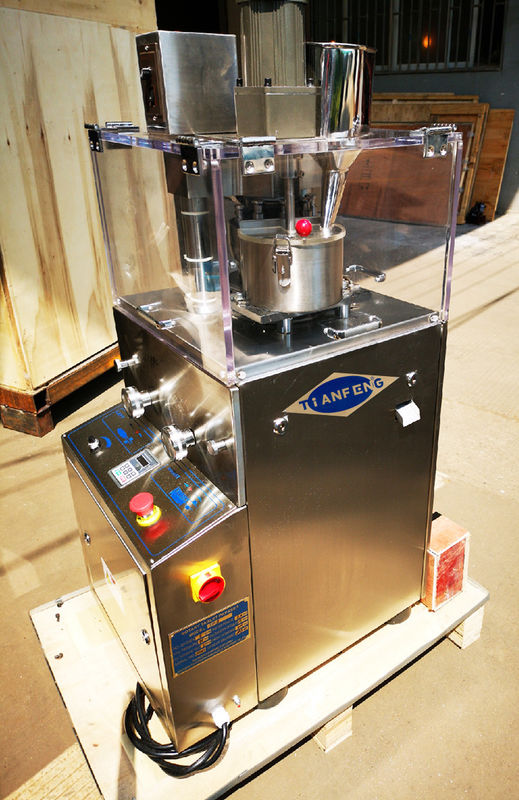

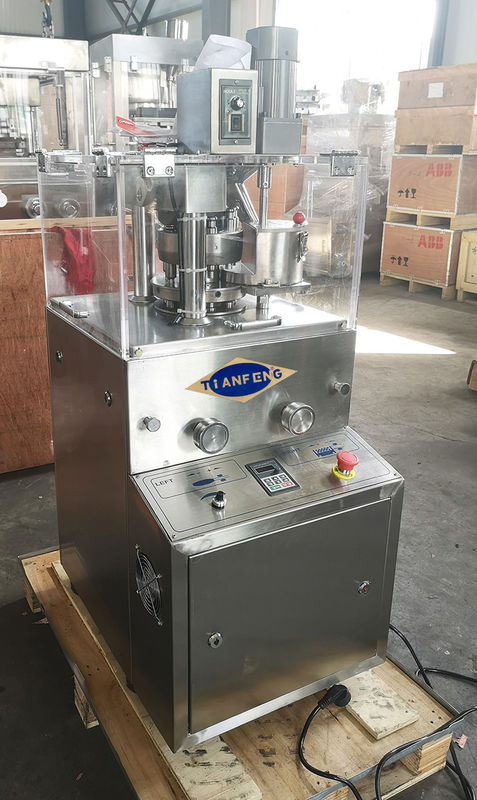

Zp5 Zp7 Zp12 Zp9 Continuous Rotary Tablet Press Pill Maker with forced feeder
Tablet press machine is a mechanical device used to transform powder material into tablets of uniform shapes and sizes.
Pill press machine can also be referred to as a tablet compression machine, pill press machine, tablet punching machine, or tablet making machine.
Main application:This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
1.This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet-pressing. It is mainly used for the manufacture of tablet in pharmaceutical continuous; it also applies to press the granular material into tablet in the industry of chemical, food, electronic etc.
2. This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.

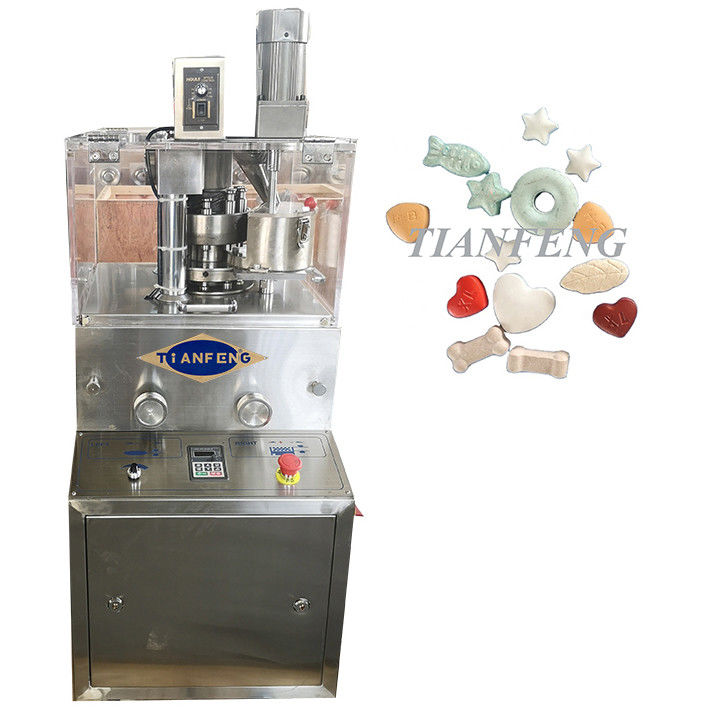

3. This machine can produce round, special-shaped and character-engraved tablets ￠5—20mm.

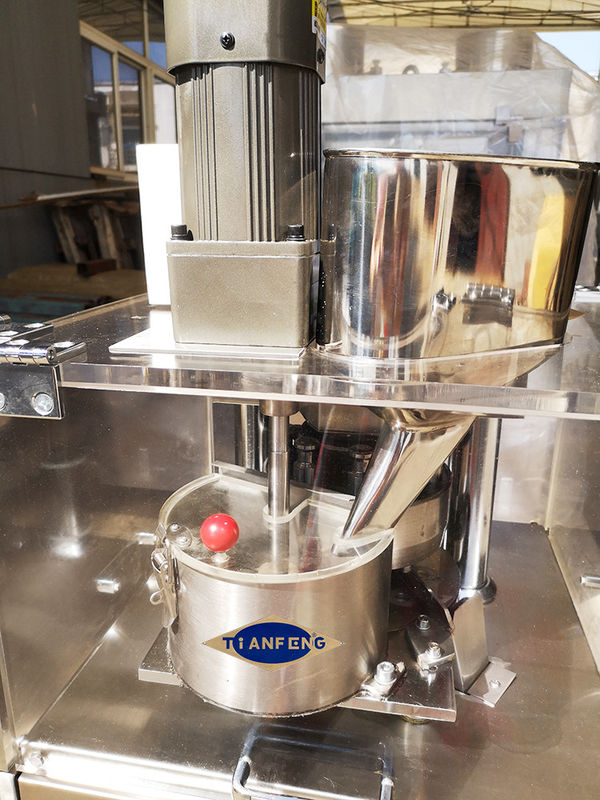

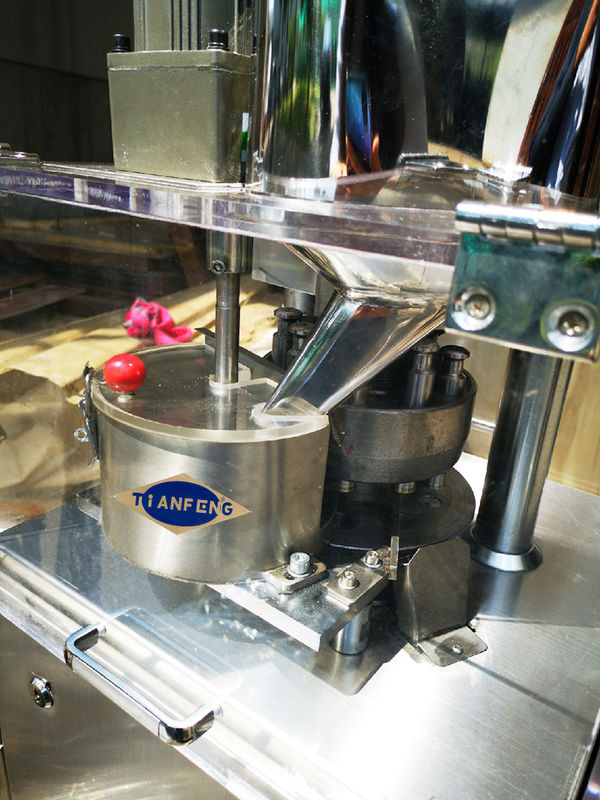

4. Add forced feeder on, solve materials loading problem.
Technical Parameters of ZP-5 7 9 12 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 | ZP-12 |
| Dies (sets) | 5 | 7 | 9 | 12 |
| Max. Pressure (KN) | 60 | |||
| Max. Dia. of tablet (mm) | 20 | |||
| Max. Filling Depth (mm) | 15 | |||
| Thickness of largest tablet (mm) | 6 | |||
| Turret speed (r/min) | 30 | |||
| Production capacity (pc/h) | 9000 | 12600 | 16200 | 21600 |
| Motor Power(KW) | 2.2 | |||
| Overall dimensions(mm) | 480*630*1100 | |||
| Net weight (kg) | 360 | |||
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
ZP5/7/9 rotary tablet press machine usually send by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
