Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW25
Main application:

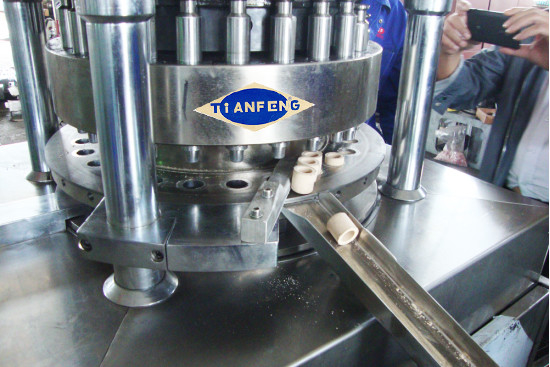

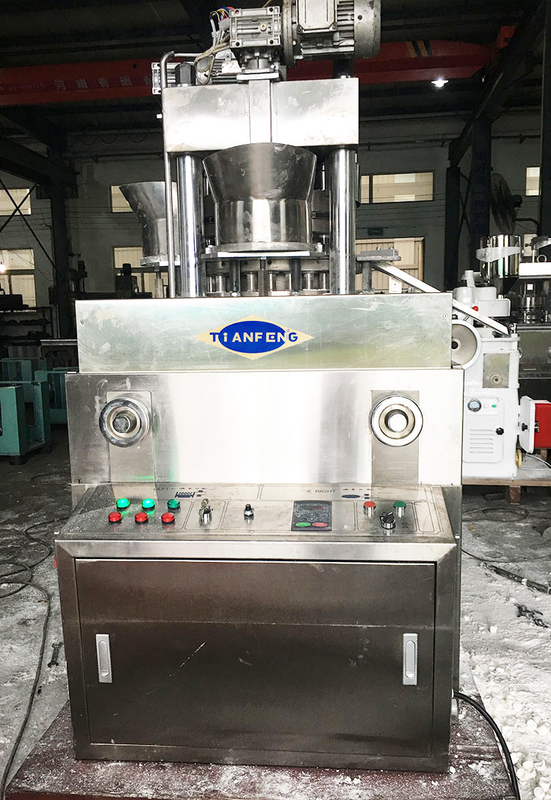

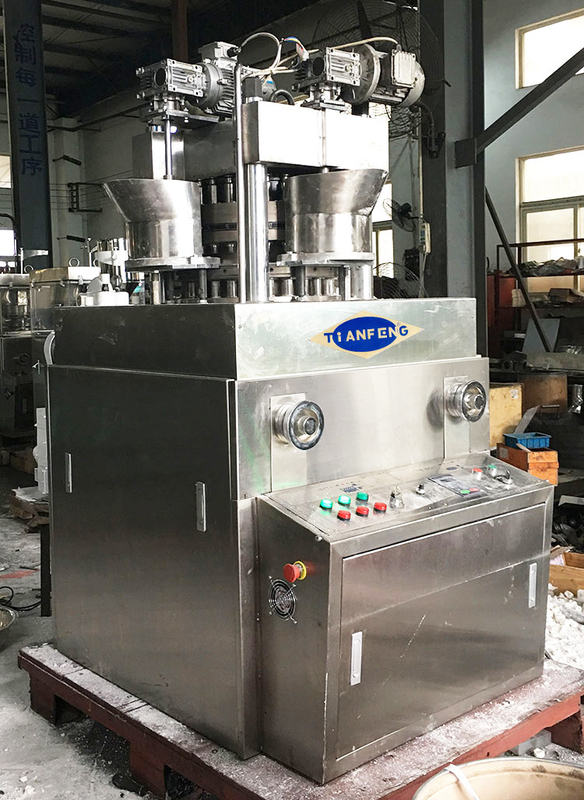

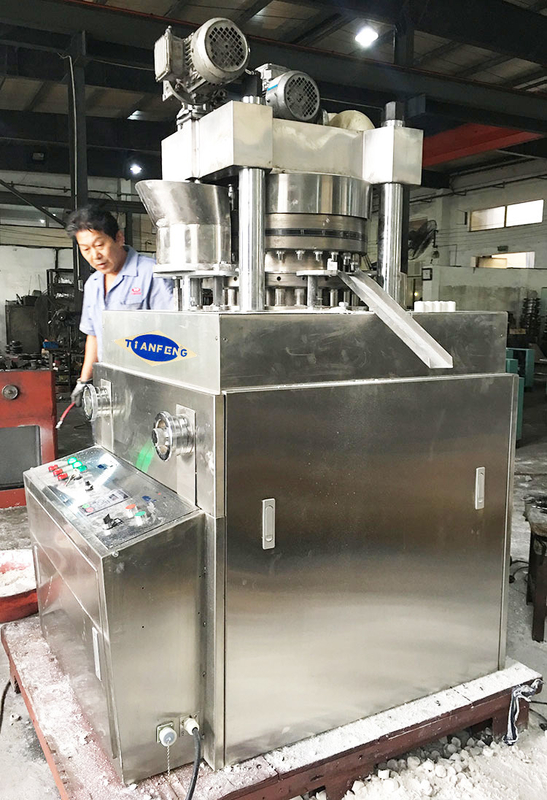

Ceramic crucible tablet press machine is one of the latest development tablet press machine which used to suppress ceramic crucible and other products. According to the need of the market and the requirements of the customers, this machine emerges as the times require. The final success of this machine is owing to the technical research and test by our company researchers for many years. Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 100kN and a force feeder.
Due to the special shape of the crucible, suppressing tablet difficultly became a major problem within the industry, has been suppression demoulding by using manual methods for many years. The ceramic crucible tablet machine of our company uses a unique way of demoulding solved this problem well, which improve the production efficiency greatly.
TECHNICAL PARAMETER
| Dies (sets) | 25 |
| Max. Pressure (KN) | 100 |
| Max. dia. of tablet (mm) | 28 |
| Max. Depth of fill (mm) | 30 |
| Max. Thickness of largest tablet (mm) | 27 |
| Rotational speed of revolving table(r/min) | 6-20 |
| Max. Capacity(pcs/h) | 15000 |
| Diameter of rotary table | 780 |
| Diameter of middle mould (mm) | 40 |
| Length of up and low punch pole (mm) | 29 |
| Length of the upper punch pole (mm) | 175 |
| Length of the lower punch pole(mm) | 157 |
| Voltage(V) | 1250*1450*1900 |
| Motor(KW) | 5.5kW 4L |
| Net Weight | 2000 |
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
