Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW25
Main application:

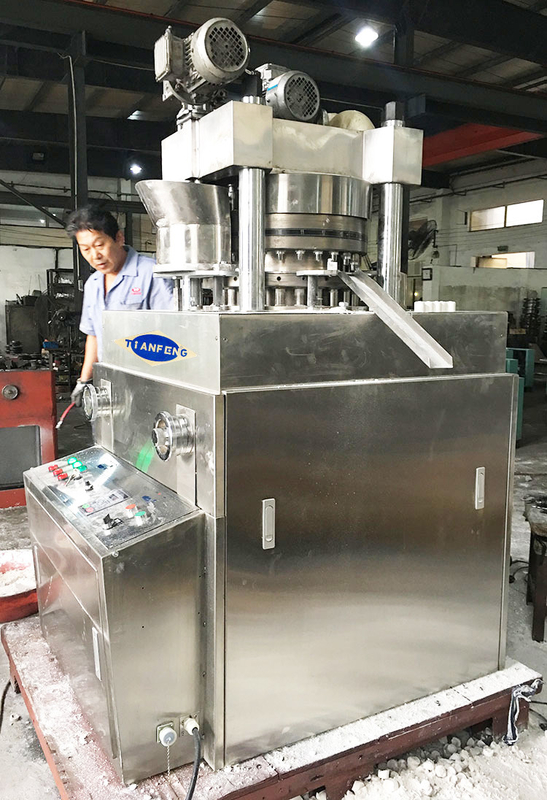

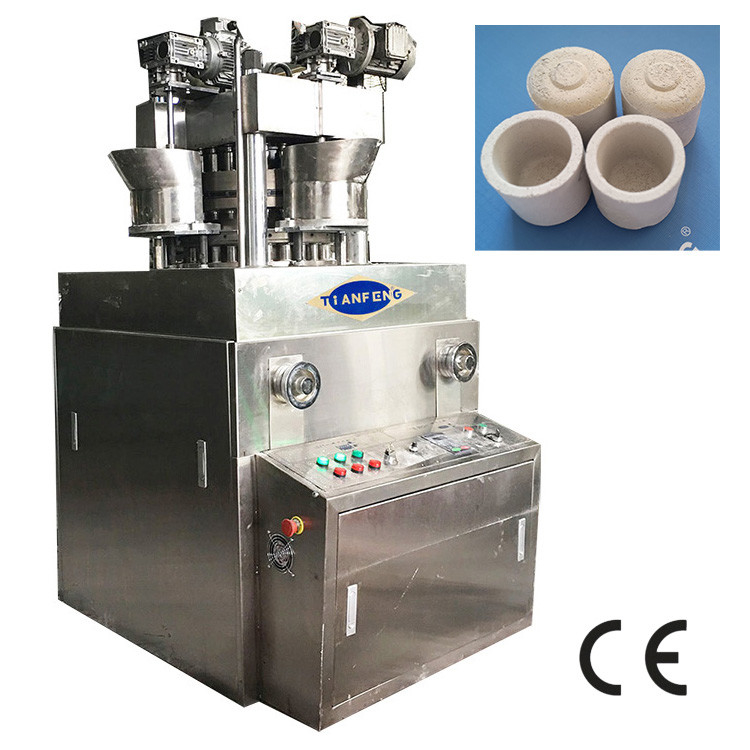

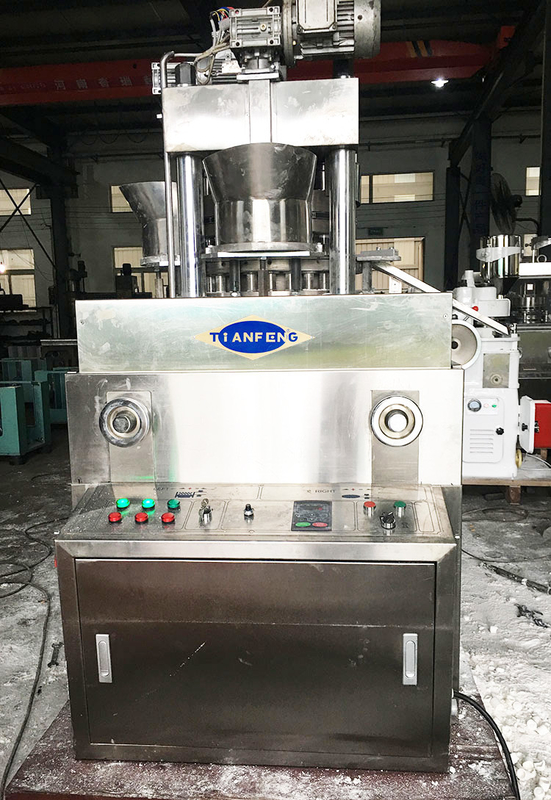

Ceramic crucible tablet press machine is one of the latest development tablet press machine which used to suppress ceramic crucible and other products. According to the need of the market and the requirements of the customers, this machine emerges as the times require. The final success of this machine is owing to the technical research and test by our company researchers for many years.

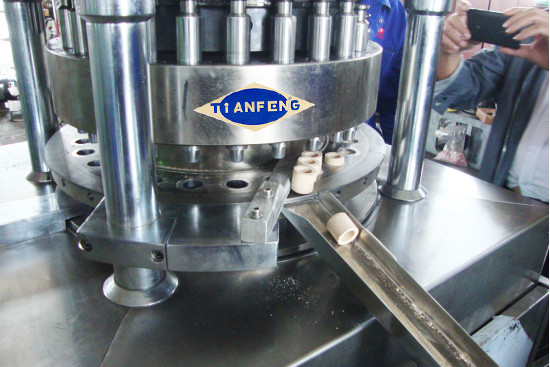

Due to the special shape of the crucible, suppressing tablet difficultly became a major problem within the industry, has been suppression demoulding by using manual methods for many years. The ceramic crucible tablet machine of our company uses a unique way of demoulding solved this problem well, which improve the production efficiency greatly.
TECHNICAL PARAMETER
| Dies (sets) | 25 |
| Max. Pressure (KN) | 100 |
| Max. dia. of tablet (mm) | 28 |
| Max. Depth of fill (mm) | 30 |
| Max. Thickness of largest tablet (mm) | 27 |
| Rotational speed of revolving table(r/min) | 6-20 |
| Max. Capacity(pcs/h) | 15000 |
| Diameter of rotary table | 780 |
| Diameter of middle mould (mm) | 40 |
| Length of up and low punch pole (mm) | 29 |
| Length of the upper punch pole (mm) | 175 |
| Length of the lower punch pole(mm) | 157 |
| Voltage(V) | 1250*1450*1900 |
| Motor(KW) | 5.5kW 4L |
| Net Weight | 2000 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW25 Ceramic crucible making machine by sea.
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
