Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW25
Products catalogues, can download here Shanghai Tianfeng products catalogues.pdf
Main application:

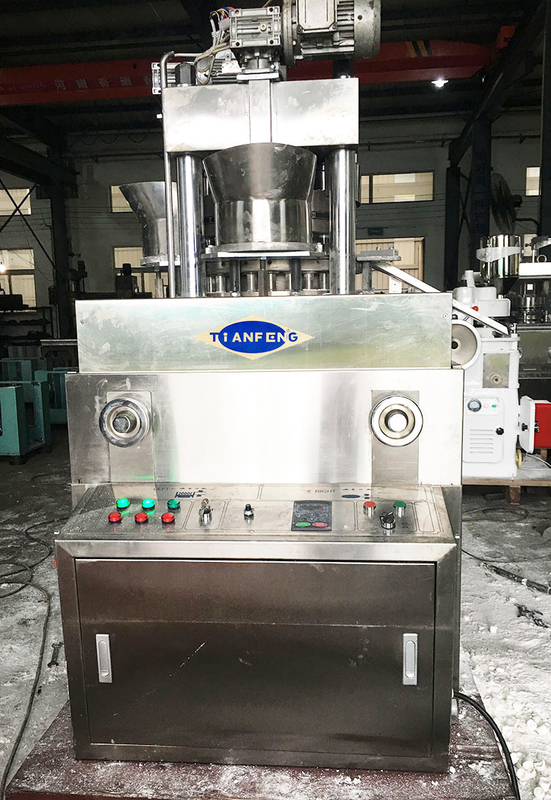

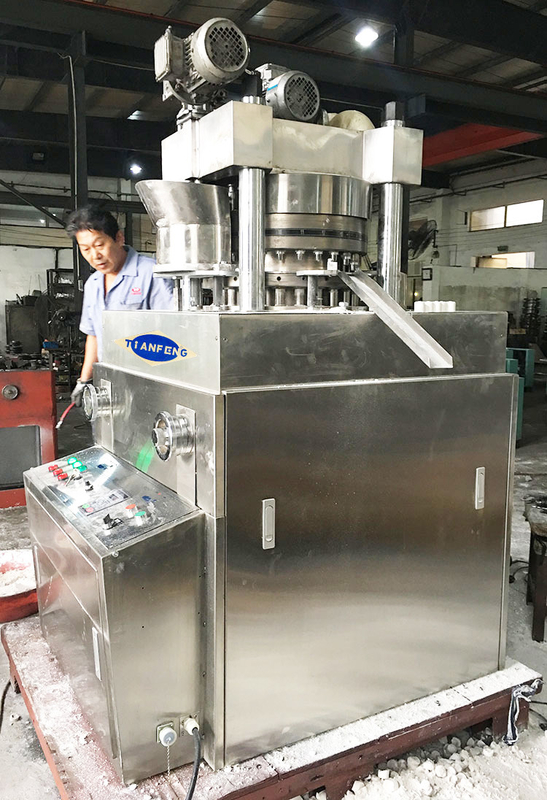

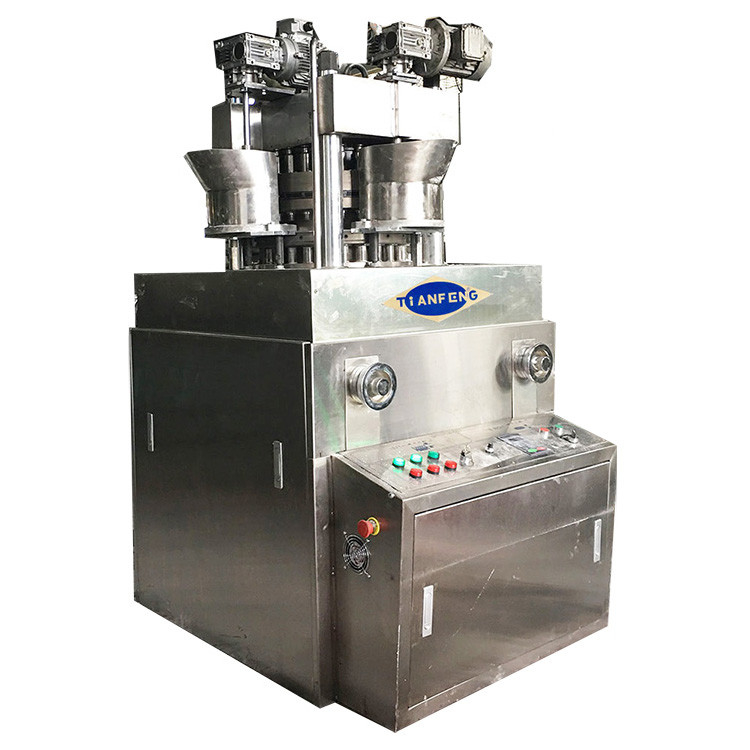

Ceramic crucible tablet press machine is one of the latest development tablet press machine which used to suppress ceramic crucible and other products. According to the need of the market and the requirements of the customers, this machine emerges as the times require. The final success of this machine is owing to the technical research and test by our company researchers for many years.

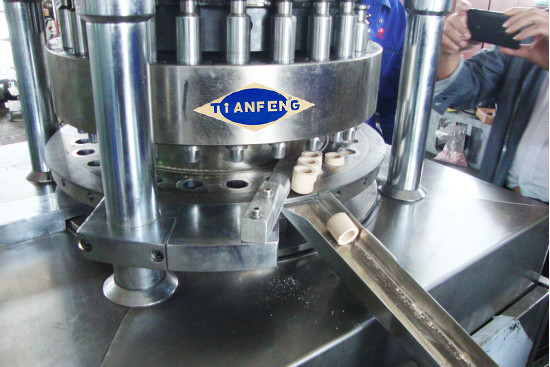

Due to the special shape of the crucible, suppressing tablet difficultly became a major problem within the industry, has been suppression demoulding by using manual methods for many years. The ceramic crucible tablet machine of our company uses a unique way of demoulding solved this problem well, which improve the production efficiency greatly.
TECHNICAL PARAMETER
| Dies (sets) | 25 |
| Max. Pressure (KN) | 100 |
| Max. dia. of tablet (mm) | 28 |
| Max. Depth of fill (mm) | 30 |
| Max. Thickness of largest tablet (mm) | 27 |
| Rotational speed of revolving table(r/min) | 6-20 |
| Max. Capacity(pcs/h) | 15000 |
| Diameter of rotary table | 780 |
| Diameter of middle mould (mm) | 40 |
| Length of up and low punch pole (mm) | 29 |
| Length of the upper punch pole (mm) | 175 |
| Length of the lower punch pole(mm) | 157 |
| Voltage(V) | 1250*1450*1900 |
| Motor(KW) | 5.5kW 4L |
| Net Weight | 2000 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW25 by sea.
Our Service:
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you.
Warranty Period:
There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After Sales Service:
1. We have 24 hours hot line for technical support.
2. We get 18 hours internet line for technical support.
3. Video camera in workshop to help you adjust and solve machine problem in working situation.
