Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
TF-2

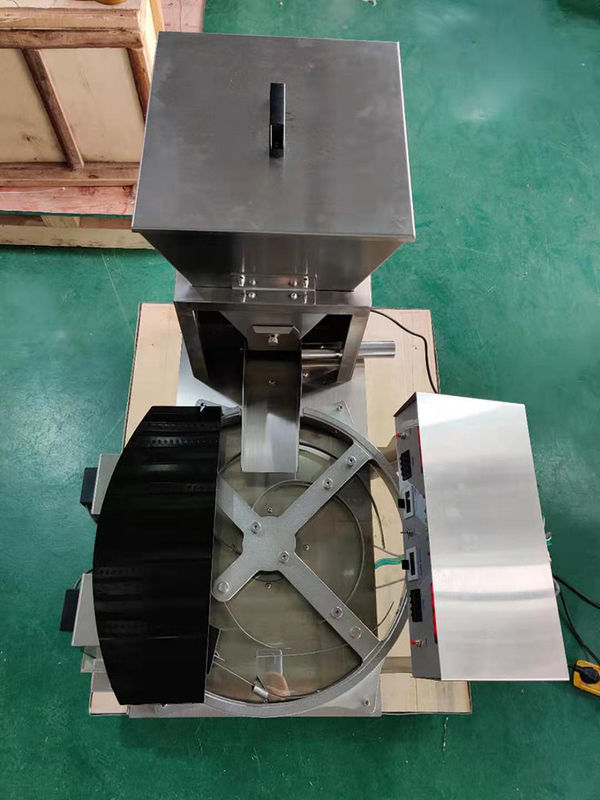

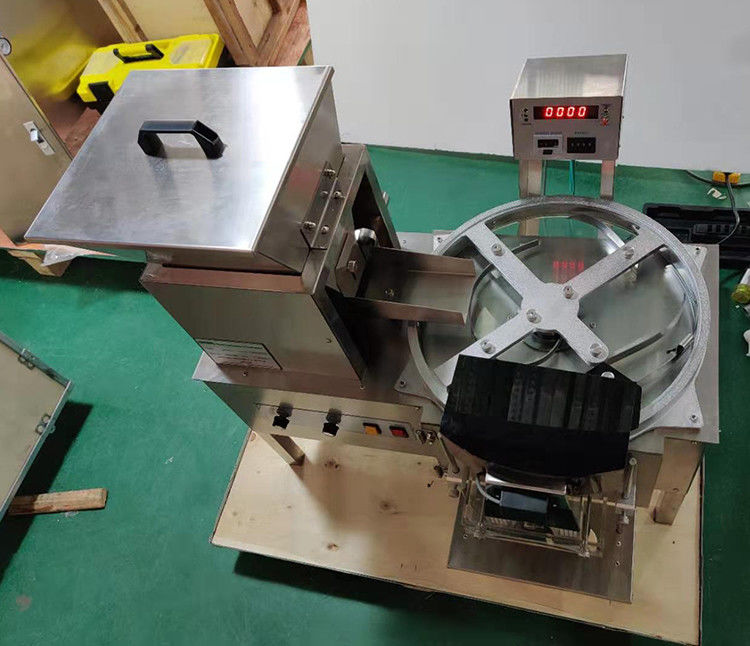

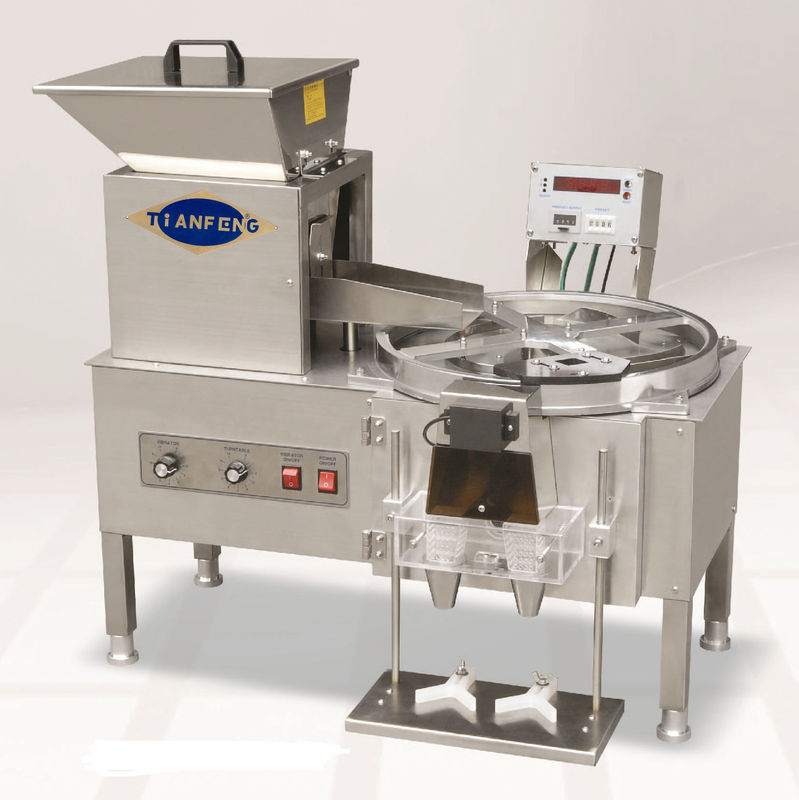

TF-2 Desktop quantitative counting machine for tablet and capsule
Desktop Electric Capsule Pill Tablet Semi Automatic Capsule Counting Machine
Feature
1. The number of particles can be set arbitrarily from 0-9999.
2. Vibrating feeding and rotary cutting design, the feeding speed can be adjusted infinitely for manual bottle placement.
3. The inside of the machine is equipped with a dust suction channel, which can be connected to a vacuum cleaner to absorb dust.
4. Photoelectric sensing technology, the particle precision is over 99.7%.
5. No need to change the mold, the tablets and capsules can be adjusted at will.
6. GMP compliant.
Operating steps
1. Check the disc to make sure there are no tablets or other debris.
2. Pour the tablets into the disc, make sure not too full.
3. The feed opening set into a plastic bag.
4. Adjust the height of the lift plate.
5. Turn on the power; check whether display of detection sensitivity (sensitivity adjustment refer to Troubleshooting).
6. Set number, such as inventory is set in 1000 or more.
7. Return to zero.
8. Turn vibration switch, adjust vibration, note whether tablets on the disc are one by one ordered, and not overlapped.
9. When the tablet counting is finished, it will automatically count the other side.
10. Please note that whether sensitivity indicator flashes normally in operation, and do sampling often; if abnormal should immediately stop the machine.
11. When operating please make sure not so many tablets are poured into the disc, so that they are not overlapped and wrong counted.
12. Avoid placing the machine near the windows, outdoors, or in the sun.
Parameters
| Model | TF-2 |
| Dimension | 81x72x84cm |
| Voltage | 110-220V 50HZ-60HZ |
| Weight | 65kg |
| Power | 100W |
| Output | 1000-2000 pcs/hour |
| Package Size | 92x78x93cm |
| Gross weight | 78kg |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped TF-2 Desktop quantitative counting machine for tablet and capsule by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
