Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
DZB250C

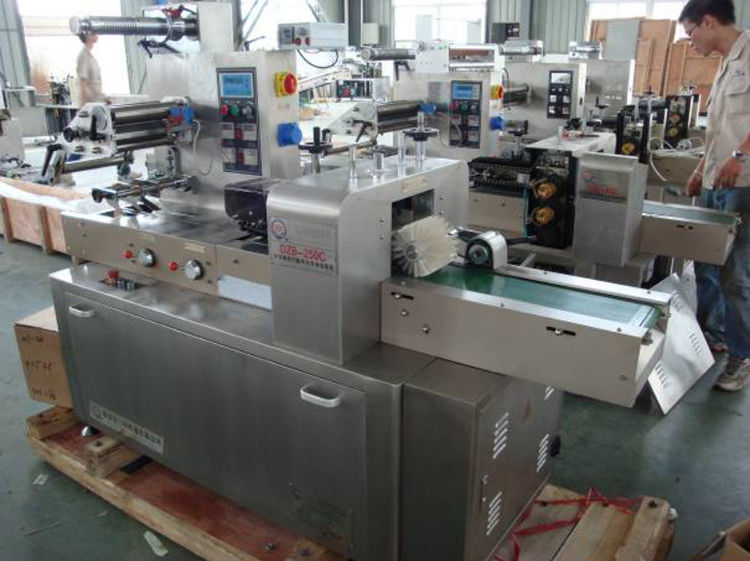

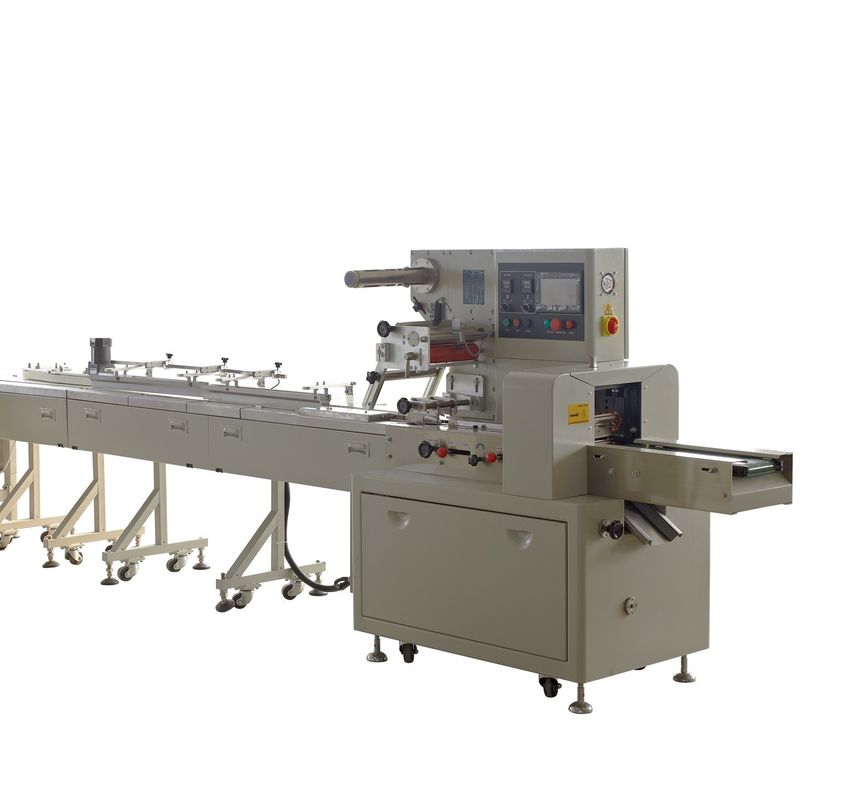

single row pillow bag type automatic feeding and packing machine DZB-250C 300 pieces/minute
This machine has good sealing performance,stable operation, flexible and fast, low noise and high efficiency. Automatic film packaging for the food industry and can also packing pressed detergent.

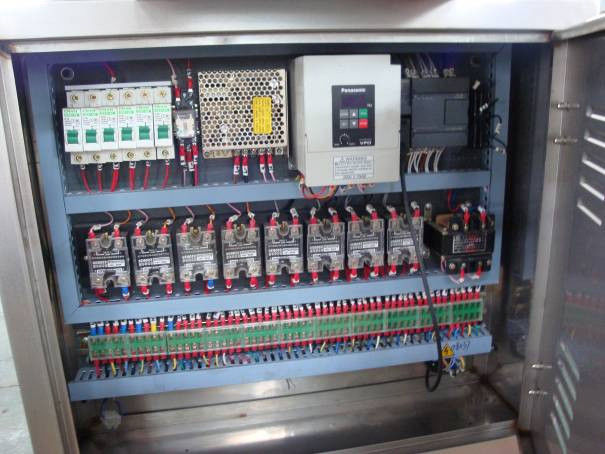

1.Programmable control: It adopts PLC programmable controller to make running of the whole machine programmed. 2.Touch display The information of the speed of machine,the set bag-length and the actual bag-length and the packing output will be clearly displayed on the screen .
3.Automatic regulating of bag-length: The alternation of the packing length can directly set through the display.It is very convenient and quick since manuall operation isunecessary.
4.Two-way compensating of color code detection Photoelectric detecting sensor to detect the color code and can conduct automatic tracking through PLC computer program combined with two-way compensating mechanism,thus making the colorcode detection quick and accurate.
5.Four-group automatic temperature control: Every heating part adopts the temperature controller to automatically control temperature,thus improving the quality of sealing.
Main Technical Parameters
| Production Capacity |
290-310 Bags/min Depending on packing film material |
| Pouch size |
L:80-90mm W:40-60mm H:5-35mm |
| width of the film | 80-250mm |
| Total power | 2kw |
| Rated voltage | 220V/50Hz |
| Weight | 680kg |
| Overall Dimension |
L*W*H 5100*640*1500mm |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
