Automatic Electromechanical Candy Pill Tablet Packing Machine

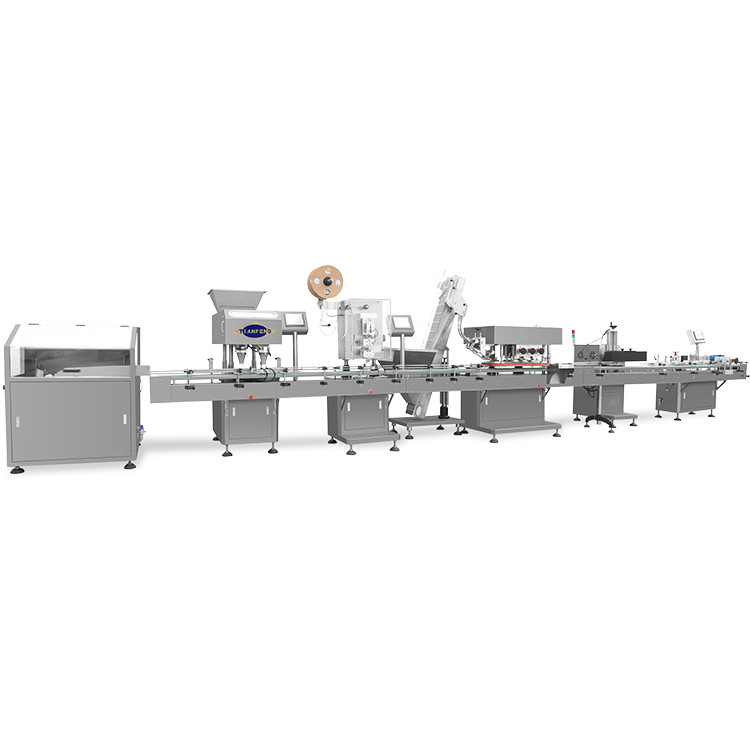

High speed tablet counting and packing machine is composed of automatic bottle unpacking machine, automatic variable frequency double head tablet counting

(pellet) machine, automatic variable frequency paper stopper and capping machine, electromagnetic induction aluminum foil sealing machine and vertical labeling machine.
It is suitable for the whole process of counting, filling, filling, capping, sealing and labeling of tablets, pills, capsules and other special-shaped tablets in pharmaceutical, food,

daily chemical and other industries.

Brief introduction of high speed tablet packing machine

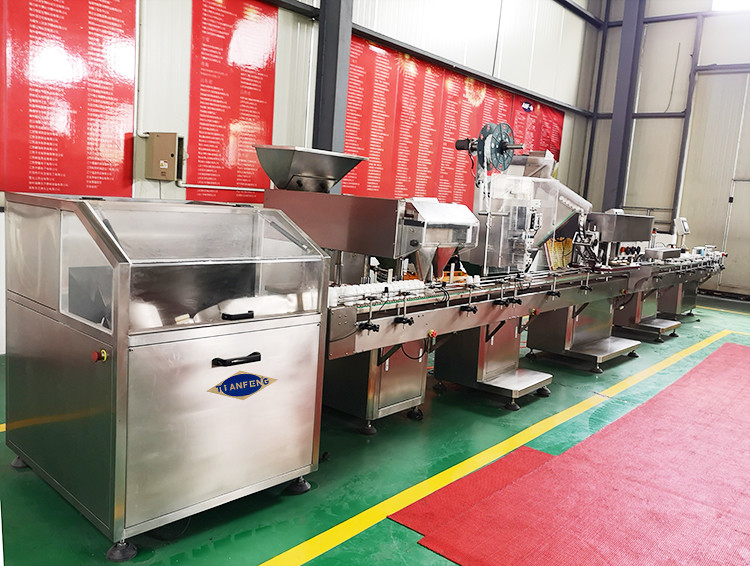

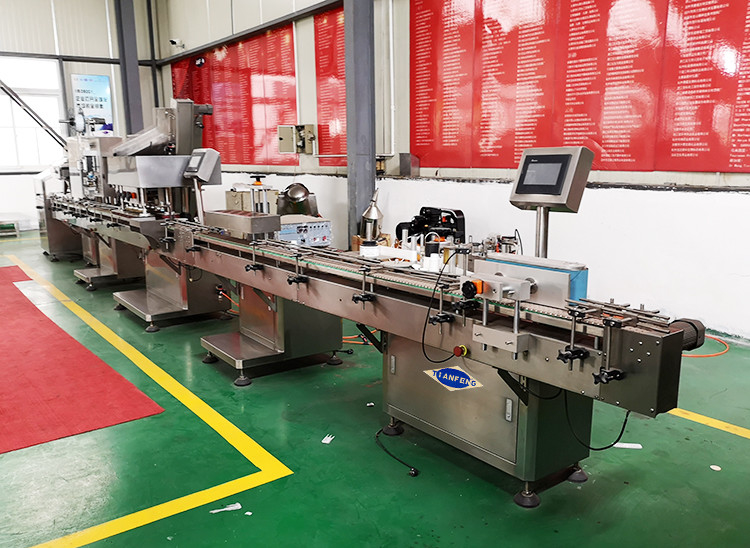

High-speed pellet counting and tablet packing production line is composed of automatic bottle unpacking machine, automatic variable frequency double head tablet

counting (pellet) machine, automatic variable frequency paper stopper and capping machine, electromagnetic induction aluminum foil sealing machine and vertical labeling machine.

TF-A160 Unscrambler

(1) This machine is electromechanical integration equipment, easy operation, easy maintenance and reliable operation.

(2) Provided with a bottle of quantitative detection and control excessive overload protection device.

(3) Rack and barrel are made of high quality stainless steel, beautiful appearance, according to the GMP requirements.

(4) Without blowing gas source, with automatic anti-bottle structure, and with a collection bottle unit.

Technical parameter

Bottle type: plastic round bottle

Production capacity: 30 ~ 120 bottles / min

Power and Power: AC220V 50Hz 0.25kw

Dimensions: 1200*1150*1300mm

Weight: 120kgs

TF-8 Electronic Counting Machine

(1) Compatibility, can count (including shaped tablets), capsules, soft capsules (transparent, opaque), pills or other solid formulation counting and solid particles and put into bottles

(2) Vibration material: 8-channel vibration even feeding, unique patented dispensing mechanism under the flap material, the material uniformly smooth, without damaging drugs;

(3) Anti-high dust: using the company's original anti-dust high photoelectric sensing technology, the same can be stable at high dust;

(4) Accurate count: photoelectric sensor automatic counting, bottling error is less than the national standard;

(5) High intelligence, with no bottle number, and many other self-test fault detection and alarm control functions;

(6) Supporting functions: automatic detection of missing bottle photoelectric sensors, automatic shutdown;

(7) Simple operates: the use of intelligent design, according to various operating parameters can be set, can store 10 groups of setting parameters for the call;

(8) Easy maintenance: The operator simply training to operate, disassembly, cleaning, parts replacement is simple and convenient, without tools;

(9) Sealed dust: dust box configuration, reduce dust pollution (optional).

Technical parameter

Types of bottles: round, square plastic bottles

Filling objects: # 00 ~ 5 capsules, soft capsules, Φ5.5 ~ 12 tablets, irregular tablets, dragees, Φ3 ~ 12 pills production capacity: 40 to 120 bottles / min (with the bottle size, quantity of contents, drug specifications related)

Bottled volume setting range: 1-9999

Power and Power: AC220V 50Hz 2.2kw

Accuracy rate:> 99.5% (better than the industry standard)

Gas source: 0.6Mpa

Dimensions: 1200×1280×1560mm

Weight: 180kg

TF-C120 Desiccant stuffing machine

(1) Compatibility for a variety of specifications, a variety of materials round, oval, square, flat square bottle.

(2) Color-coded, colorless standard disc desiccant bags;

(3) Pre desiccant tape designed to avoid uneven packet transfer bags, ensure the accuracy of the bag length control.

(4) Put the bag with desiccant bag thick adaptive design, to avoid breaking the bag during transmission occurs.

(5) High durability blade, cutting accurate and reliable, will not cut through the desiccant bags;

(6) No bottle does not work, self-test failure, desiccant bag not into bottle alarm monitoring control to ensure continuous operation of the device and desiccant bag stuffed accuracy;

(7) Fully automatic operation, and on the next step of a joint control intelligent, good coordination, no hand operation, labor-saving;

(8) In English or Chinese control panel, you can save ten groups of varieties parameter adjustment, especially convenient to use.

(9) Control chip imported from America, photoelectric sensing element is produced in Taiwan, stable and durable.

Technical parameter

Types of bottles: round, oval, square, flat square bottle

Desiccant bag: discoid desiccant bag, the specific size is determined according to the size of the bottle

Production capacity: 50 ~ 120 bottles / min

Power and Power: AC220V 50Hz 0.5kw

Gas source: 0.6Mpa

Dimensions: 1600 × 750 × 1780mm

Weight: 130kg

TF-D902 Capping Machine

(1) Compatibility, suitable for all kinds of cover type, bottle;

(2) One drop cap, wearing a cap device is suitable for all kinds of caps;.

(3) No bottle, no cap does not work, crooked cover, reverse cover, without removing foil detection, fault self-test to check the alarm control and many other functions, to ensure continuity and accuracy;

(4) Fully automatic operation, the upper and lower each process intelligent joint control, good coordination, no hand operation, labor-saving;

Technical parameter

Bottle type: 20 ~ 500ml round, oval, square, flat square bottle

Production capacity: 50 ~ 120 bottles / min

Power and Power: AC220V 50Hz1.8kw

Gas source: 0.6Mpa

Dimensions: 1850 × 600 × 1560mm

Weight: 600kg

TF-2 Induction sealing machine

(

(1) Applicability sealing power can be automatically adjusted according to the size of aluminum foil;

(2) Includes self-test fault detection, alarm control and many other functions, to ensure continuity and accuracy;

(3)High electromagnetic conversion efficiency, low energy consumption, good sealing effect;

(4)Too small sealing power or overload timely will give tips and shut down automatically;

(5) Air cooling effect is good, long life;

(6)Fully automatic operation, and on the next step of intelligent joint control, good coordination, no hand operation, labor-saving;

Technical parameter

Bottle type: 15~500ml round, oval, square, flat square bottle, bottle diameter 15~45mm

Production capacity: 50 ~ 120 bottles / min

Power and Power: AC220V 50Hz2.5kw

Gas source: 0.6Mpa

Dimensions: 1200 × 500 × 1250mm

Weight: 100kg

TF-201 Stickers round bottle side labeling machine

(

(1) Compatibility for a variety of circular objects;

(2) Go mark using standard tensioning design, which can ensure the quality of a code, also can accurately control the length of the paper label from the scale and uniformity.

(3) Using the standard preamplifier system, a stable standard, labeling flatness, high positional accuracy;

(4) Roll of paper marked for different bottle types, using different methods to ensure quality labeling;

Technical parameter

Bottle type: 15 ~ 500ml square bottle round

Production capacity: 30 ~ 120 bottles / min

Power and Power: AC220V 50Hz0.15kw

Gas source: 0.6Mpa

Dimensions: 1650 × 800 × 900mm

Weight: 150kg
