Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
JR-50
| No. | Name | Quantity | Technical | Mark |
| I | Shot pressing system Room area: about 10-20 ㎡ | |||
| PLC automatic pelletizing machine system temperature; 18-22 ℃; 40% - 60% | ||||
| 1 | Pelletizing machine | 1 unit |
1. All aviation materials 2. High wear resistance 3. 0-5 rpm, adjustable speed 4. Swiss CNC boring machine spindle hole 5. Spindle runout 0.02mm (ensure high yield) 6. All imported bearings (reduce equipment wear rate and ensure service life) 7. Feeding pump accuracy ± 1% (to ensure the accuracy of soft capsule loading) 8. The internal worm gear, gear and main shaft of the equipment are made of chrome tungsten manganese, tin bronze and other military materials. 9. Cr12 is used for reversing plate, upper and lower cover plates and side strip of medicine pump. After vacuum quenching, the hardening degree can reach above HRC60 (guarantee durability) 10. Micro lubrication system (reduce paraffin oil consumption, save cost) 11. Rubber roller adopts separate frequency conversion speed regulation 12. Rubber cooling adopts automatic water cooling 13. The strong wind shaping design in the capsule area makes the capsule shaping more beautiful 14. Direct injection design is adopted for pressing, so it is easier for suspension to press soft capsule |
1. Electric oil bath heating spray 2. Adjust the loading capacity 0.5ml oil(loading difference ≤± 1%) 3. Double die. Solve the capillary leakage of viscous materials |
| 2 | Stainless steel conveying system | 1 set | SS304 | PLC control |
| 3 | PLC electric control system | 1 set | 10’ | |

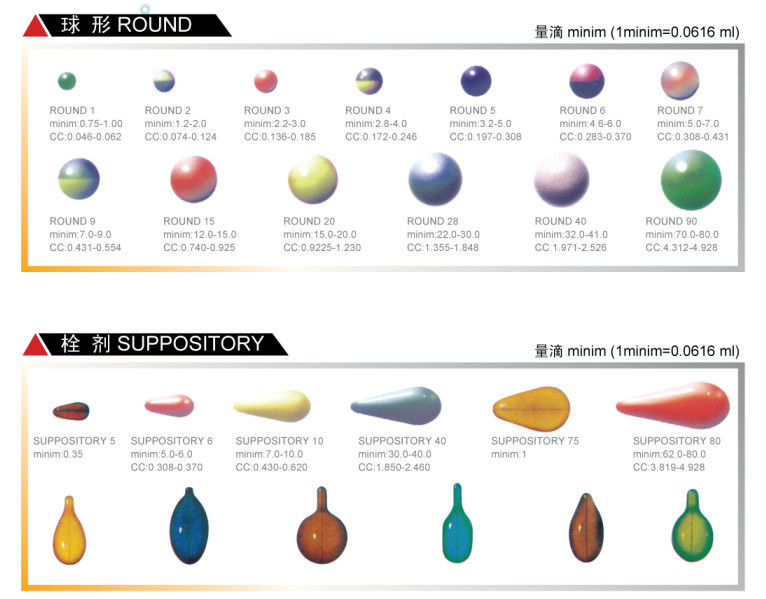

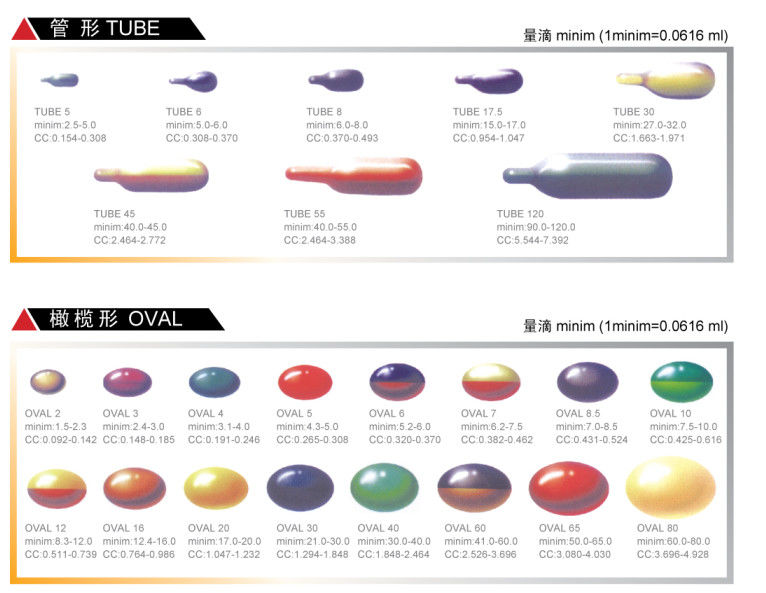

| 4 | Mould (shape and specification according to user's requirement) | 1 set | Two sets of mould (in line with the pressing of viscous substances to prevent leakage) | Including: special hard aluminum alloy mold, spray body, splitter plate variable gear |
| 5 | cooling-water machine | 1 set | Built in water cooling and air cooling (antifreeze provided by the supplier) | PLC control |
| II | Chemical glue system | |||
| 1 | Water bath glue pot | 1 set | JG type 30L | With insulation, mixing and instrument electrical control, with an air compressor |
| 2 | Water ring vacuum pump | 1 unit | SHZ-III | Water ring type |
| III | Batching system | |||
| 1 | Colloid mill | 1 unit | JTM-50 | Homogenous material |
| IV | Drying system temperature; 22-26℃; below 40rh | |||
| 1 | Tray | 20 m |
1,PE material 2,Size:720x520x50mm |
|
| 2 | Rotating cage | 1 | D 320x450mm | |
Performance characteristics of JR50 equipment
I. Oil bath electric heating spray body (patented technology)
1. The spray body temperature is uniform, the temperature is stable, and the temperature fluctuation is guaranteed within ≤ 0.1 ℃
(Uneven temperature caused by the ball big and small head, false seam and other issues).
2. Due to the high temperature accuracy, the film thickness can be reduced by about 0.1 mm (about 10% gelatin can be saved).
II. Automatic adjustment of charge by computer
1. Automatic adjustment of loading, saving time and raw materials.
2. The loading accuracy is high, and the loading accuracy is ≤± 1%, which greatly reduces the loss of raw materials.
III. The hardness of reversing plate, upper and lower body, left and right cushion strip reaches hrc60-65
1. It is suitable for users to produce all kinds of liquid suspension of traditional Chinese medicine, greatly improving the service life.
IV. Mold locking disc (three-point locking)
1. After locking, it will never run the line. At the same time, it has fine-tuning function.The operation is very simple.
V. Micro lubrication system (reduce paraffin oil consumption, save cost)
1. The oil quantity is automatically adjusted according to the speed.
VI. Built in cooling air system, equipped with water chiller.
VII. Rubber roller adopts separate frequency conversion speed regulation
1. If the quality of glue is not good in production, it can be solved by adjusting the speed of rubber roll.
VIII. Cold air shaping design of pill delivery area,
1. Avoid wrapping mesh glue on the drawing shaft to make the capsule more beautiful.
IX. A special inclined bucket is used in the lower part of the mould, which is very convenient for cleaning.
X. The feed pump and the machine head are driven from the outside, so the lubricating oil in the feed pump will not enter the machine head. (feed pump independently sealed)

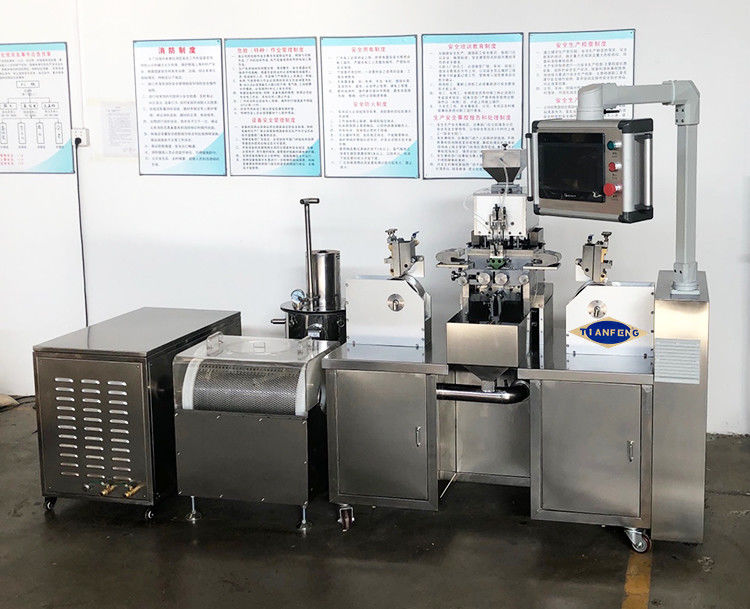

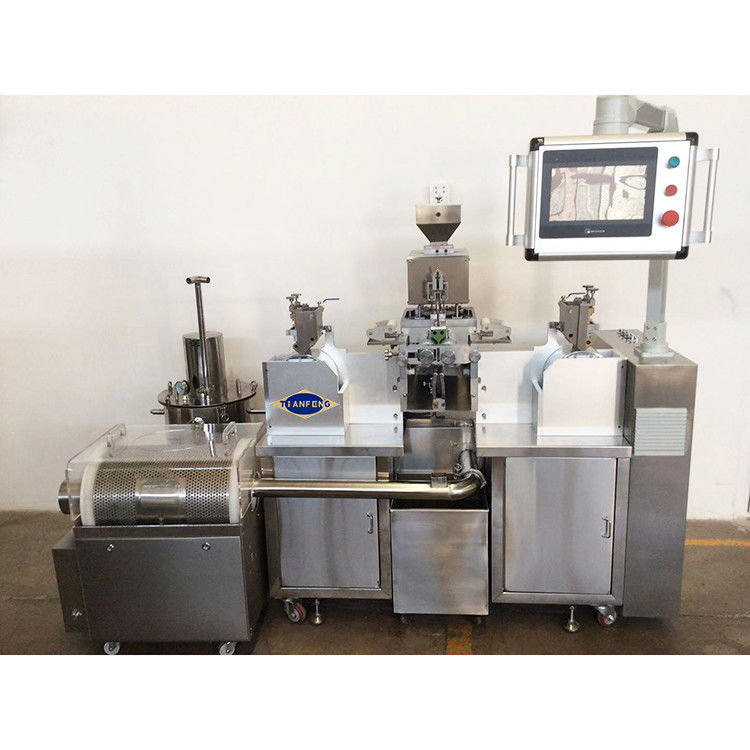

Technical parameters of JR-50 desktop experimental soft capsule machine
(1) Desktop soft capsule host (pill making system): the host adopts PLC touch screen human-machine interface control and liquid crystal display (including one refrigerator, one rubber wheel and one mould)
Production capacity: 5000 capsules / hour
Dimension of rolling die: Φ 64 × 75mm
Speed of rolling die: 0-4 rpm frequency conversion control
Liquid single plug supply: 0-2ml
Accuracy of finished capsule loading: ± 1%
Equipment power: 1.5kw
Power supply system: three phase AC220V 50HZ
(2) Shaping rotary cage (shaping system)
Size of drying rotating cage: Φ 320x450mm
Drying rotating speed: 16rpm
Equipment power: 0.09kw AC220 V
Fan power: AC220 V, 50 Hz, 40 W
(3) Glue tank (glue system), (equipped with an experimental water ring vacuum pump, an oil-free silent air compressor)
Effective volume in the barrel: 40L
The allowable pressure in the barrel: - 0.09mpa ~ + 0.06mpa
Heating power: 1.5kwac220 V
Mixing power: 0.1kwac220 V
Outer diameter: ￠ 450 × 1200 mm)
(4) Air dry barring (PE products)
Trolley size: 755 × 489 × 20 (mm)
Pallet size: 750 × 485 × 55 (mm)
Quantity: 20 pieces
(5) Working platform table (stainless steel 304 products)
External dimension: 1200 * 600 * 800
(6) Colloid mill
Fineness: 20-70 μ M
Speed: 3200 rpm
(7) Water chiller
Refrigeration temperature: - 5-16 degrees
Power: 1.1kw
