Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
TF-8

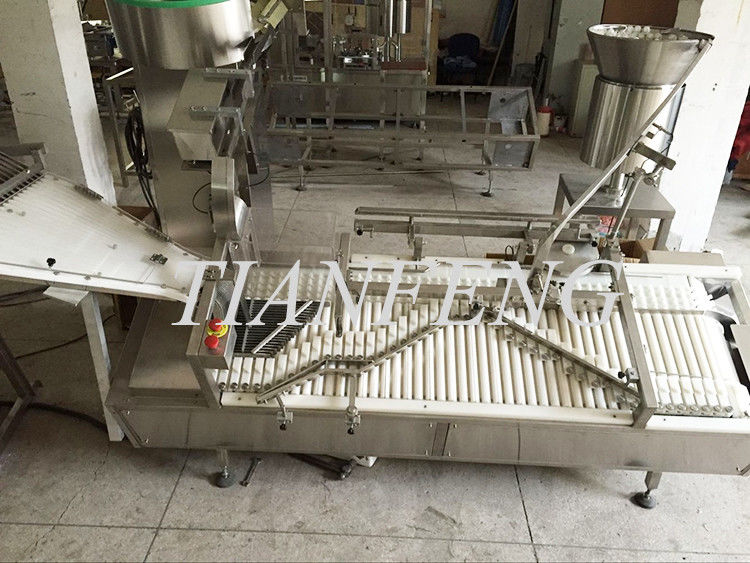

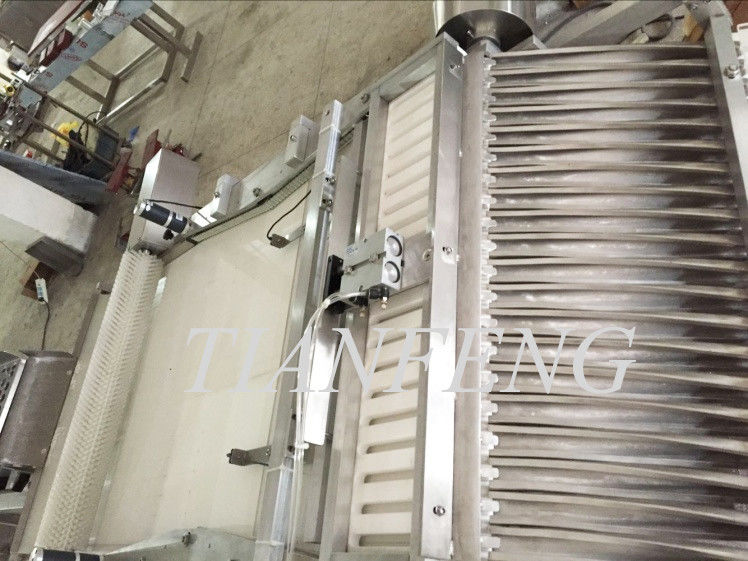

Automatic horizontal loading machine
Features and parameter technology of automatic horizontal loading machine:
Fully automatic horizontal film loading machine realizes mechatronics. Automatic bottle arranging, sheet pushing, capping and capping. The degree of automation is the first in China. The machine is controlled by computer and the Chinese menu is displayed on the touch screen. This machine is easy to operate and maintain.
1. Gr-wzp-80 automatic horizontal loading machine: 60-80 bottles per minute
2. Pushing accuracy: greater than or equal to 99%
3. Applicable specification: tube bottle
4. Capping rate: 99% or more
5. Pushing mode: continuous
6. Gas source: self provided
7. Power: 5kW, single phase, 220V
8. Overall dimension: 5500mm (length) * 1800mm (height)
9. Total weight of machine: 800kg
I. TF-80 bottle sorting machine (including hoist)
All stainless steel equipment meet GMP standard 304
Specification, disc speed control system.
1. Power of steering wheel motor: 25W and 90W
2. Production capacity: 60-80 bottles per minute.
3. The speed of production capacity can be adjusted.
4. Machine size (L × w × h): 1000mm × 1000mm × 1800mm
5. Weight of main engine: 150kg
6. Power source: AC220 V, 50 Hz
II. TF-wzp-80 automatic horizontal film loader (including cover)
Fully automatic horizontal film loading machine realizes mechatronics. Automatic bottle arranging, sheet counting, lid arranging and capping. The degree of automation is the first in China. The machine adopts computer control, touch screen Chinese menu display, mechanical control of several pieces, gland and other functions. This machine is easy to operate and maintain.
1. Gr-wzp-60 automatic horizontal film filling machine: 60-80 bottles per minute
2. Counting accuracy: greater than or equal to 99%
3. Applicable specification: tube bottle
4. Capping rate: 99% or more
5. Counting mode: continuous
6. Gas source: self provided
7. Power: 1100W, single phase, 220V
8. Overall dimension: 2900mm (L) * 1100mm (H) * 1600mm (H)
9. Weight of main engine: 500kg
10. Main motor: 1.5kw
III. TF-80 pill feeder and processor(including horizontal vibrator)
All stainless steel equipment meet GMP standard 304
Specification, level feeding control system.
1. Motor power: 0.37kw, scanning motor: 40W
2. Processing capacity: 1200-1600 tablets per minute.
3. The speed of production capacity can be adjusted.
4. Machine size (L × w × h): 2600mm × 1100mm × 1600mm
5. Weight of main engine: 150kg
6. Power source: AC220 V, 50 Hz
IV. TF-tbj-80 horizontal labeling machine (including on-line conveyor belt)
1. Production speed: 80 bottles / min
2. Precision of labeling: + - 0.5mm (inner diameter of label drum & 76, maximum outer diameter & 350mm, width 80mm)
3. Scope of application: round bottle
4. Voltage: 220 V / 50 Hz
5. Overall dimension: 1600mm (L) * 650mm (W) * 1300mm (H)
Note: main electrical equipment
1. Origin of motor: Shanghai
2. Origin of PLC: Mitsubishi
3. Origin of touch screen: velon
4. Origin of fiber amplifier: KEYENCE
5. Servo motor: Delta
6. Relay: OMRON
7. Switching power supply: Zhejiang Mingwei
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped by sea .
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
