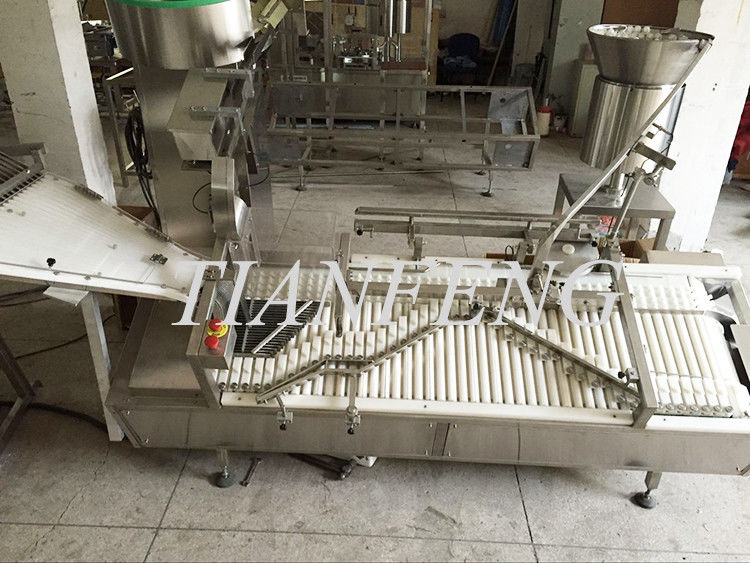

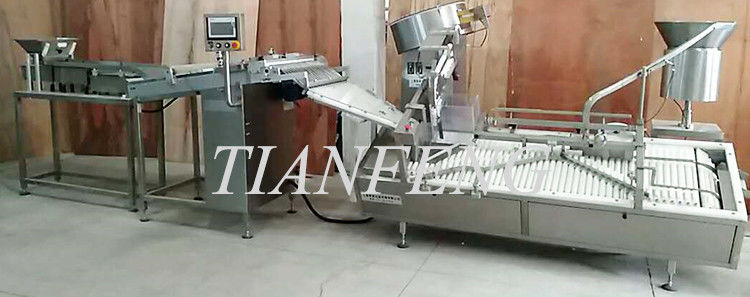

Automatic horizontal loading machine
Features and parameter technology of automatic horizontal loading machine:
Fully automatic horizontal film loading machine realizes mechatronics. Automatic bottle arranging, sheet pushing, capping and capping. The degree of automation is the first in China. The machine is controlled by computer and the Chinese menu is displayed on the touch screen. This machine is easy to operate and maintain.
1. Gr-wzp-80 automatic horizontal loading machine: 60-80 bottles per minute
2. Pushing accuracy: greater than or equal to 99%
3. Applicable specification: tube bottle
4. Capping rate: 99% or more
5. Pushing mode: continuous
6. Gas source: self provided
7. Power: 5kW, single phase, 220V
8. Overall dimension: 5500mm (length) * 1800mm (height)
9. Total weight of machine: 800kg
Main electric configration list
| No. | Name | Specification | Quant. | Brand |
|
|
PLC host | FX1S-30MT | 1 | Siemens |
|
|
Fiber amplifier | FS-V11 | 6 | Keyence |
|
|
Cover vibrator coil | MQ1-5141 | 1 | Huafeng |
|
|
Lamination vibrator coil | MQ1-5131 | 3 | Huafeng |
|
|
Touch screen |
7” 700IE 6AV66 48-OCC11-3AXO |
1 | Siemens |
|
|
Host inverter | FR-D740-1.5K-CHT | 1 | Mitsubishi |
|
|
Chip processor inverter | FR-D740-0.4K-CHT | 1 | Mitsubishi |
|
|
Gear motor | GH-28-0.75KW, speed 1/90 | 1 | Zhishi transmission (Shanghai) |
|
|
Slicing motor | YS-712-4-037KW | 1 | Dedong electric |
|
|
Relay | RMIE-224DL-24DC | 10 | WRG |
|
|
Cylinder |
TDA25-15 CDJ2B10*15-B |
2 2 |
AirTAC |
|
|
Battery valve | 4V21008B, DC24V | 4 | AirTAC |
|
|
Air switch | 2P6A | 1 | Delixi |
|
|
Contactor | CJX0910 | 1 | Delixi |
|
|
Emergency stop | ZB2-BE102C | 1 | Schneider |
|
|
Key switch | ZB2-BE101C | 1 | Schneider |
|
|
Switching Mode Power Supply | S-100-24V | 1 | Zhejiang Mingwei |
|
|
Optical fiber | FU-6F-M6 | 6 | Keyence |
|
|
Turn off the power | HAM10-12GM-N1 | 2 | Bei Funing |
|
|
Flat photoelectricity | ASG | 2 | TAKEX |
|
|
Slicing motor
Gear change |
BLDC-38SRZ-FS 24V 3500RPM AD38S-043-171213 ZGX38RSS101i64-121 |
2 | Zhengk |
|
|
Scanning motor Gear change |
5IK40RGN-CF 5GN-10KB |
1 | Songgang Electric Machinery |
|
|
Bottle handling Motor Gear change |
5IK90RGN-CF 5GN-30KB |
1 | Songgang Electric Machinery |
|
|
Bottle sweeping motor Gear change |
5IK40RGN-CF 5GN-5KB |
1 | Songgang Electric Machinery |
|
|
Lifting motor Gear change |
5IK180RGN-CF 5GN-50KB |
1 | Songgang Electric Machinery |
I. TF-80 bottle sorting machine (including hoist)
All stainless steel equipment meet GMP standard 304
Specification, disc speed control system.
1. Power of steering wheel motor: 25W and 90W
2. Production capacity: 60-80 bottles per minute.
3. The speed of production capacity can be adjusted.
4. Machine size (L × w × h): 1000mm × 1000mm × 1800mm
5. Weight of main engine: 150kg
6. Power source: AC220 V, 50 Hz

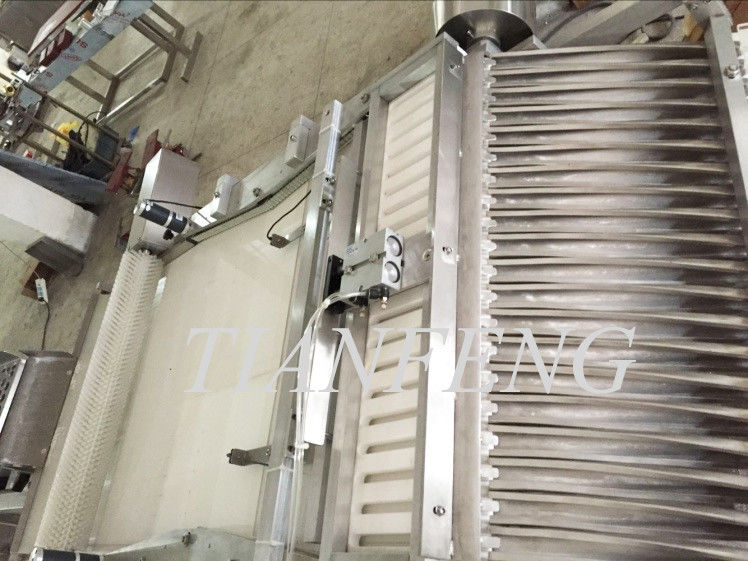

II. TF-wzp-80 automatic horizontal film loader (including cover)
Fully automatic horizontal film loading machine realizes mechatronics. Automatic bottle arranging, sheet counting, lid arranging and capping. The degree of automation is the first in China. The machine adopts computer control, touch screen Chinese menu display, mechanical control of several pieces, gland and other functions. This machine is easy to operate and maintain.
1. Gr-wzp-60 automatic horizontal film filling machine: 60-80 bottles per minute
2. Counting accuracy: greater than or equal to 99%
3. Applicable specification: tube bottle
4. Capping rate: 99% or more
5. Counting mode: continuous
6. Gas source: self provided
7. Power: 1100W, single phase, 220V
8. Overall dimension: 2900mm (L) * 1100mm (H) * 1600mm (H)
9. Weight of main engine: 500kg
10. Main motor: 1.5kw

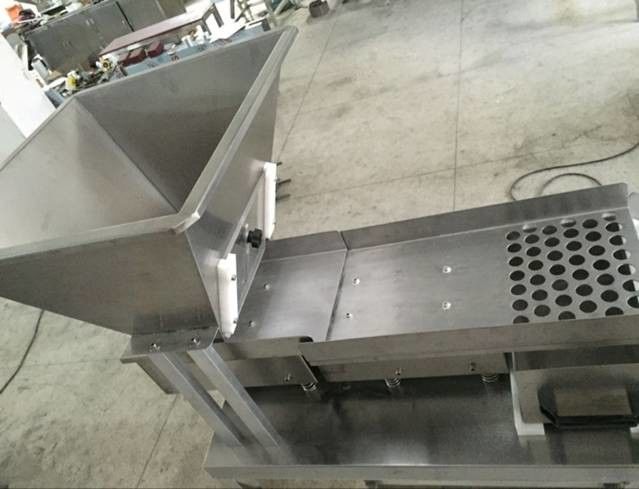

III. TF-80 pill feeder and processor(including horizontal vibrator)
All stainless steel equipment meet GMP standard 304
Specification, level feeding control system.
1. Motor power: 0.37kw, scanning motor: 40W
2. Processing capacity: 1200-1600 tablets per minute.
3. The speed of production capacity can be adjusted.
4. Machine size (L × w × h): 2600mm × 1100mm × 1600mm
5. Weight of main engine: 150kg
6. Power source: AC220 V, 50 Hz
IV. TF-tbj-80 horizontal labeling machine (including on-line conveyor belt)
1. Production speed: 80 bottles / min
2. Precision of labeling: + - 0.5mm (inner diameter of label drum & 76, maximum outer diameter & 350mm, width 80mm)
3. Scope of application: round bottle
4. Voltage: 220 V / 50 Hz
5. Overall dimension: 1600mm (L) * 650mm (W) * 1300mm (H)
Note: main electrical equipment
1. Origin of motor: Shanghai
2. Origin of PLC: Mitsubishi
3. Origin of touch screen: velon
4. Origin of fiber amplifier: KEYENCE
5. Servo motor: Delta
6. Relay: OMRON
7. Switching power supply: Zhejiang Mingwei
