Place of Origin:
CHINA
Brand Name:
TIANFENG
Certification:
ISO
Model Number:
TF-2

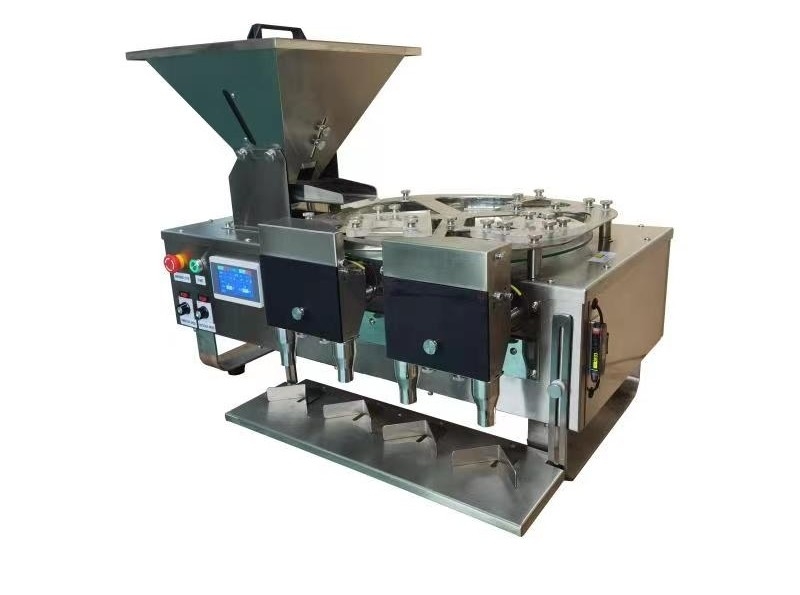

TF Electronic Particle Counting Machine Our company adopts the most advanced vibrating type cutting material in the world, stepless speed regulation of oscillator, touch screen PLC intelligent control, optical fiber sensor head counting, system self-check, fault indication alarm, automatic shutdown, etc. Technology, the body is made of all stainless steel, designed according to GMP standards, it is a high-tech drug counting equipment integrating photoelectric motor.
This machine is a quasi-desktop counting equipment with reasonable design, compact structure, convenient use and high counting efficiency. It can be widely used in the rapid counting of various shapes and sizes of tablets, capsules, pills, transparent soft capsules and other medicines. The bottling, counting and bottling precision has reached the advanced level of similar products at home and abroad.
| Product Model | TF-4 |
| Speed | 1200-3000 grains/min |
| Scope of application | Hard capsules, soft capsules, tablets, pills, etc. |
| Control method | Touch screen control |
| Counting method | Infrared detection |
| Applicable size | Capsule model 00#-5# Tablet diameter 5-25MM |
| Counting error | ±0.3% |
| Voltage power | 110V/220V/50-60Hz /500W |
| Net weight (kg) | 65kg |
| Dimensions | 922mm×580mm×724mm |
| Packed weight | 95KG |
| Package size | 1050MMX650MMX850MM |
| Machine material | Main parts material stainless steel 304 (0Cr18Ni9) |
