Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZWS137

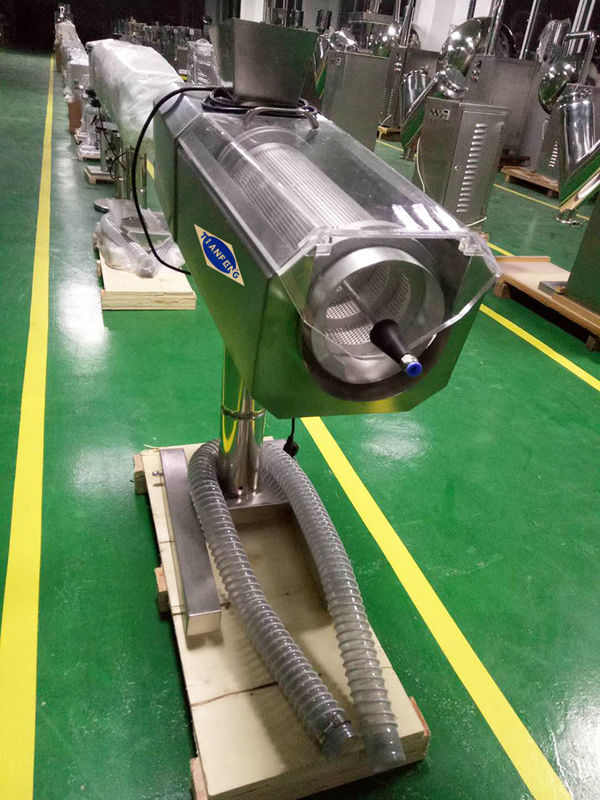

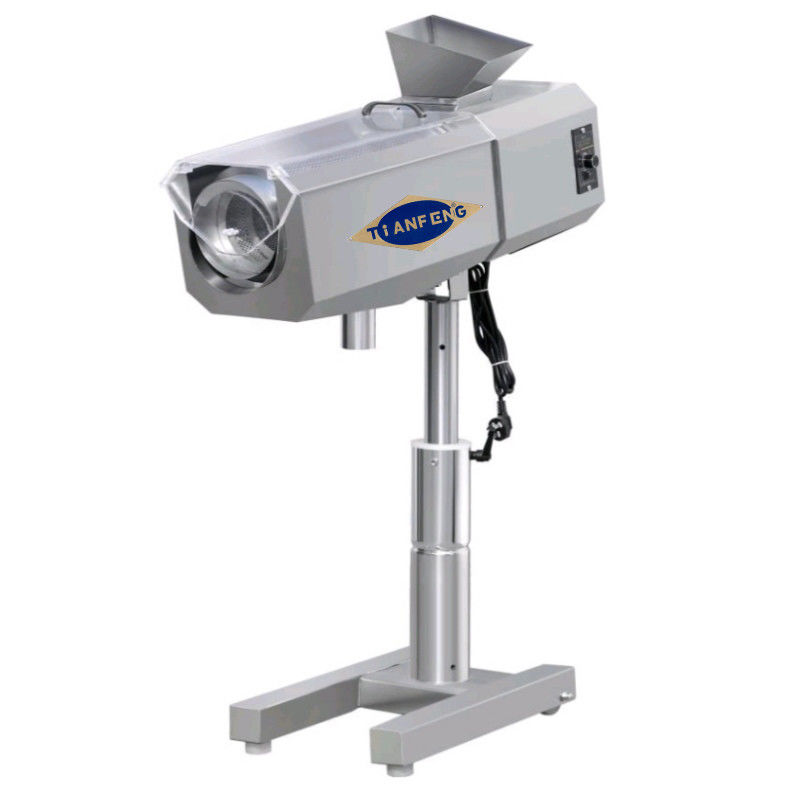

High-speed tablet deduster tablet polisher chemical & pharmaceutical machine ZWS137
The high speed tablet deduster model ZWS adopts the priciple of compressed air purging,centrifugal dedusting and roller deburring and vacuum extraction to clean the powder attaching on the surface of tablet is clean andthe edges are regular. It's suitable for highspeed dedusting for all kind of tablets. This machine can be linked directly to any type of high speed tablet press.
Advantages:
1.The machine is designed to meet GMP standard and entirely made of stainless steel 304. (Can be special made by 316SS)
2. Compressed air sweep off the dust from engraving pattern and surface of tablet within a short distance.
3. Centrifugual de-dusting makes the tablet de-dusting efficiently. Rolling de-burring is a gentle de-burring which protect the edge of tablet.
4. The static electricity on surface of tablet/capsule can be avoided due to non-brushed airflow polishing.
5. Long de-dusting distance, dedusting and deburring are performed synchronously.
6. High output and high efficiency, thus it`s more suitable to handle big tablets, engraving tablets, it can be linked to any high-speed tablet presses directly.
7. Service and cleaning is easy and convenient thanks to fast dismantling structure.
8. The tablet inlet and outlet can be adapted to any operating condition.
9. Infinitely variable driving motor allows the speed of screen drum adjustable continuously.
Technical Data:
| Electrical connections | 220V,50HZ,1P/110V,60HZ,1P |
| Diameter of rotating roller | 137mm |
| Power input | 25W |
| Tablet size | 5-25mm |
| Drum speed | 0-75rpm |
| Suction capacity | 350 m3/h |
| Compress air | 3bar(Oil,water and dust-free) |
| Output | 800000 tab./h (6mm Tablet) |
| Weight | 35kg |
| Dimension | 750*320*1030mm |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped solid preparation auxiliary equipment stainless steel vacuum feeder XCJ-36 by sea with tablet press
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
