Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
QVC-1 QVC-2 QVC-3 QVC-4 QVC-5

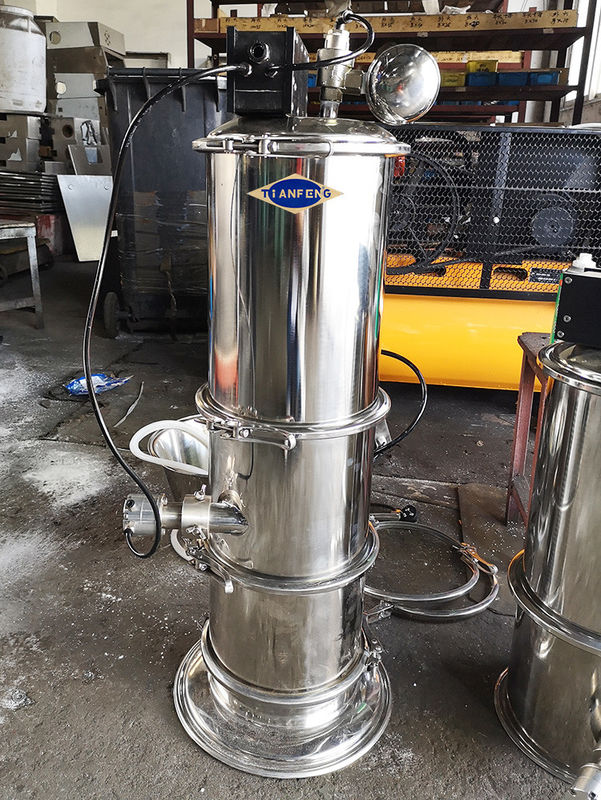

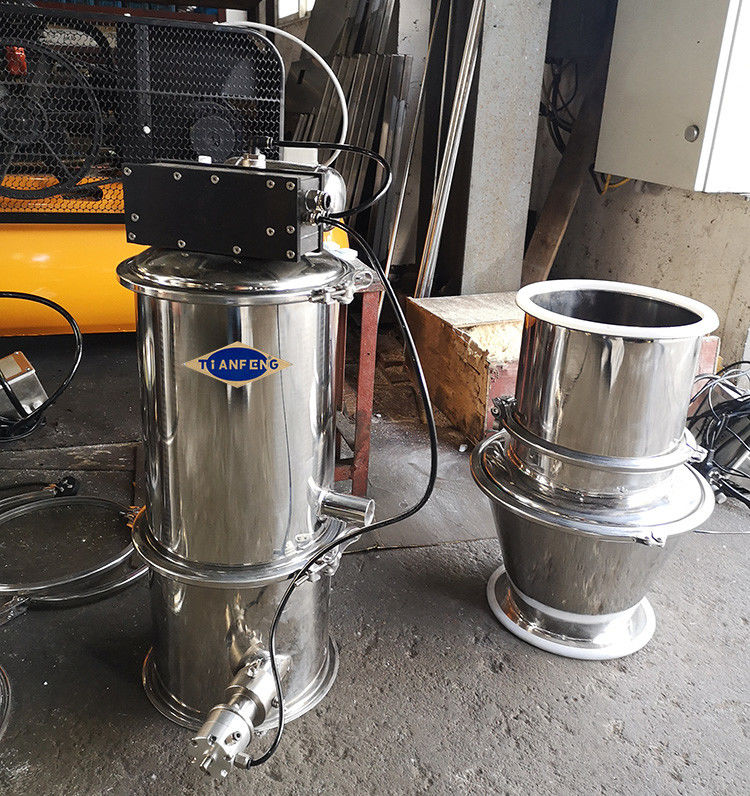

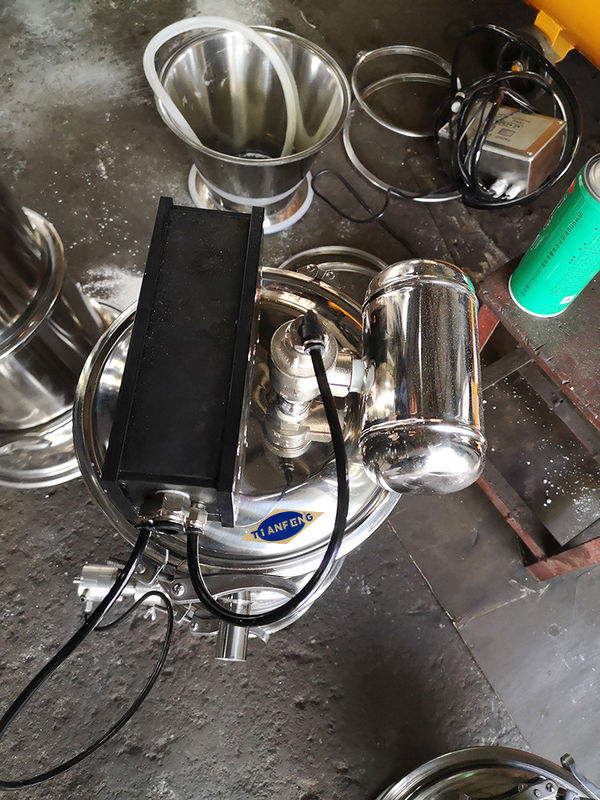

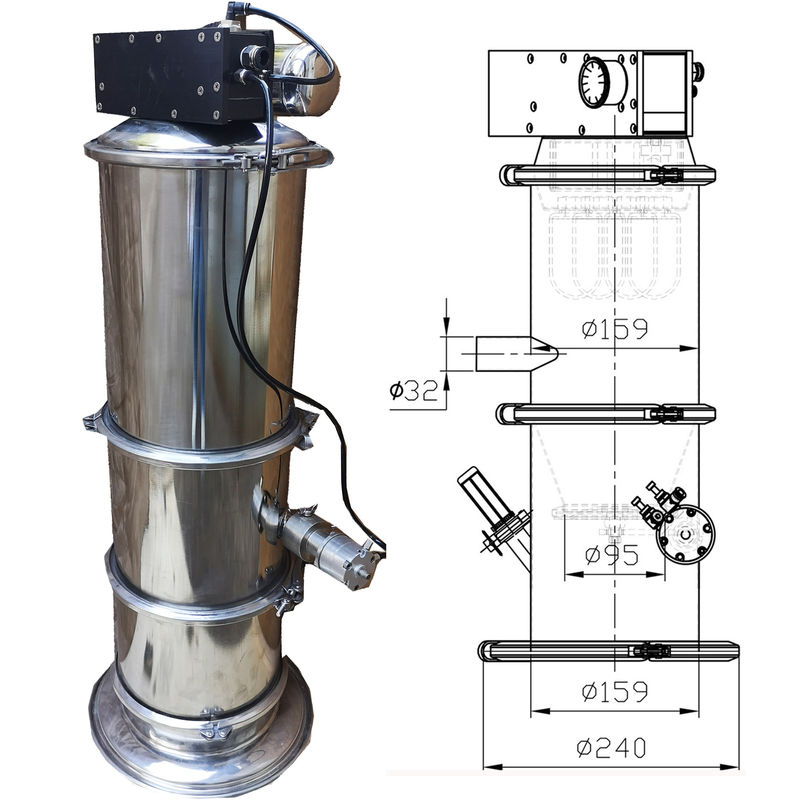

Automatic loading machine QVC Series Grain Pneumatic Vacuum Lifter Transfer Feeder Conveyor For Powder
Technical parameter
| Model | Feeding volume(kg/h) | Air consumption (lite/minute) | Pressure of suppied air |
| QVC1 | 350 | 180 | 0.5-0.6 |
| QVC2 | 700 | 360 | 0.5-0.6 |
| QVC3 | 1500 | 720 | 0.5-0.6 |
| QVC4 | 3000 | 1440 | 0.5-0.6 |
| QVC5 | 6000 | 2880 | 0.5-0.6 |
| QVC6 | 9000 | 4320 | 0.5-0.6 |

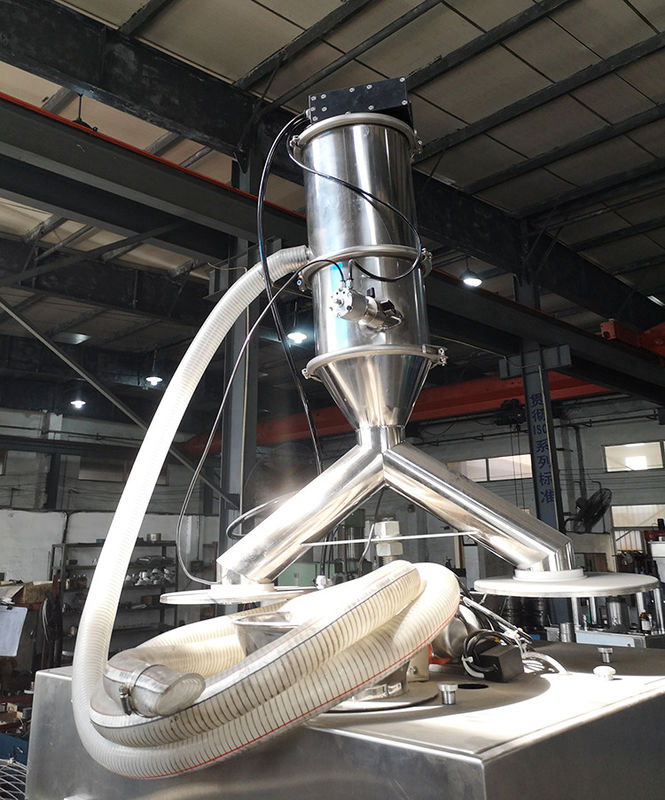

Vacuum feeder is a vacuum feeding pneumatic vacuum pump as well as vacuum source. With this vacuum feeder, materials could be fed directly from container into mixer, reactor, hopper, sheet press, packing machine, vibrating griddle, pellet trimming machine, hydro-sects pellet, dry-state pellet and disintegrators.
For the vacuum feeder with material level control, automatic feeding is realized with the hopper of the material-receiving machine through material level control. When the material level is higher than a position in the hopper of the material level, vacuum feeder stops feeding, but when the material level is lower than a position in the hopper, vacuum feeding continues automatically. And feeding on the material-receiving machine is thus completed.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped solid preparation auxiliary equipment stainless steel tablet deduster SZS230 by sea with tablet press
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
